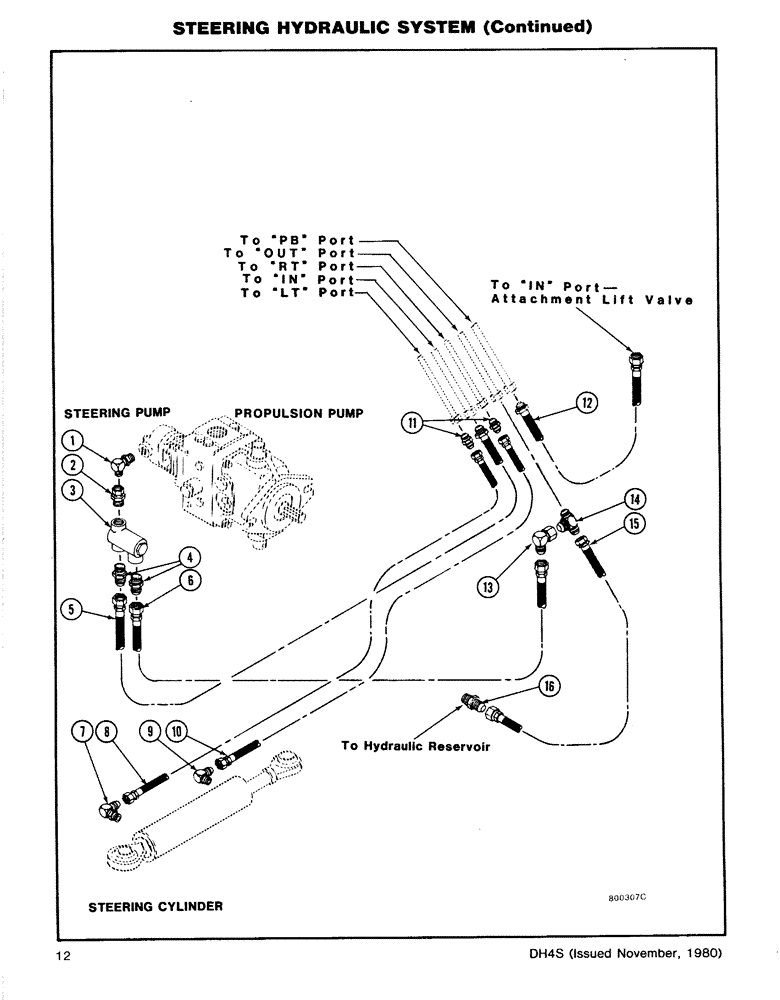

Запчасти Case DH4B (1-12) - STEERING HYDRAULIC SYSTEM (41) - STEERING

1

218-5392

ELBOW,90 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 90 degrees (9/16 ORB x 3/8 NPSM)

1шт.

2

218-5440

FITTING

CONNECTOR - (3/4 ORB x 3/8 NPTF)

1шт.

3

H542910

LOCK VALVE

RELIEF VALVE ASSEMBLY - (See Figure 16)

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

2шт.

5

H213116

HYDRAULIC HOSE,9.52 mm ID x 939.80 mm, SAE 100R1

9.52 mm ID x 939.80 mm, SAE 100R1

1шт.

6

C14316

HOSE

- 3/8 X 36 (3/4 JIC Fe Sw Ends)

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 ORB x 9/16 JIC M)

1шт.

8

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

9

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees (3/8 MP x 3/8 JIC Fe Sw)

1шт.

10

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

6.35 mm ID x 1524.00 mm, SAE 100R1

1шт.

11

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - (9/16 JIC M)

2шт.

12

H354837

HOSE,0.38" ID x 58.00", SAE 100R1A

1шт.

13

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degrees (3/4 JIC M x 3/4 JIC Fe Sw)

1шт.

14

218-594

TEE,3/4"-16, 37 Degree

- (3/4 JIC M)

1шт.

15

D51686

HOSE

- 3/8 x 54 (3/4 JIC Fe Sw Ends)

1шт.

16

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - (3/4 MP x 3/4 JIC M)

1шт.
