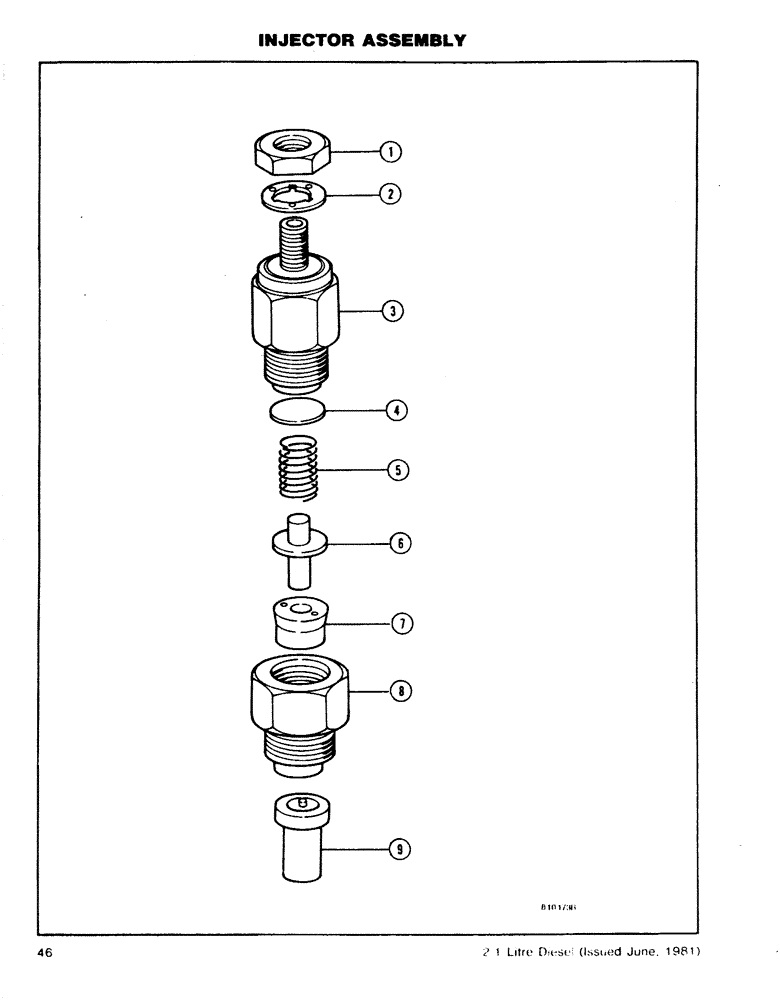

Запчасти Case DH4B (46) - INJECTOR ASSEMBLY (10) - ENGINE

H659508

TUBE

INJECTOR ASSEMBLY

4шт.

Injector assembly after engine SN#159665 use N14200.

1шт.

H659896

NOZZLE HOLDER

INJECTOR HOLDER ASSEMBLY

4шт.

1

H412254

NUT

4шт.

2

H412262

PACKING

4шт.

3

H412270

NOZZLE HOLDER

INJECTOR HOLDER BODY

4шт.

4

H412288

BLOCK

SHIM - 1.00 mm

1шт.

4

H412296

BLOCK

SHIM - 1.05 mm

1шт.

4

H412304

BLOCK

SHIM - 1.10 mm

1шт.

4

H412312

SHIM,1.95mm Thk

1шт.

5

H412320

SPRING

- Presure

4шт.

6

H412338

PIN

- Presure

4шт.

7

H412346

SPACER

4шт.

8

H412353

NUT

- Retaining

4шт.

9

H659904

NOZZLE INJECTION

INJECTOR TIP ASSEMBLY

4шт.
