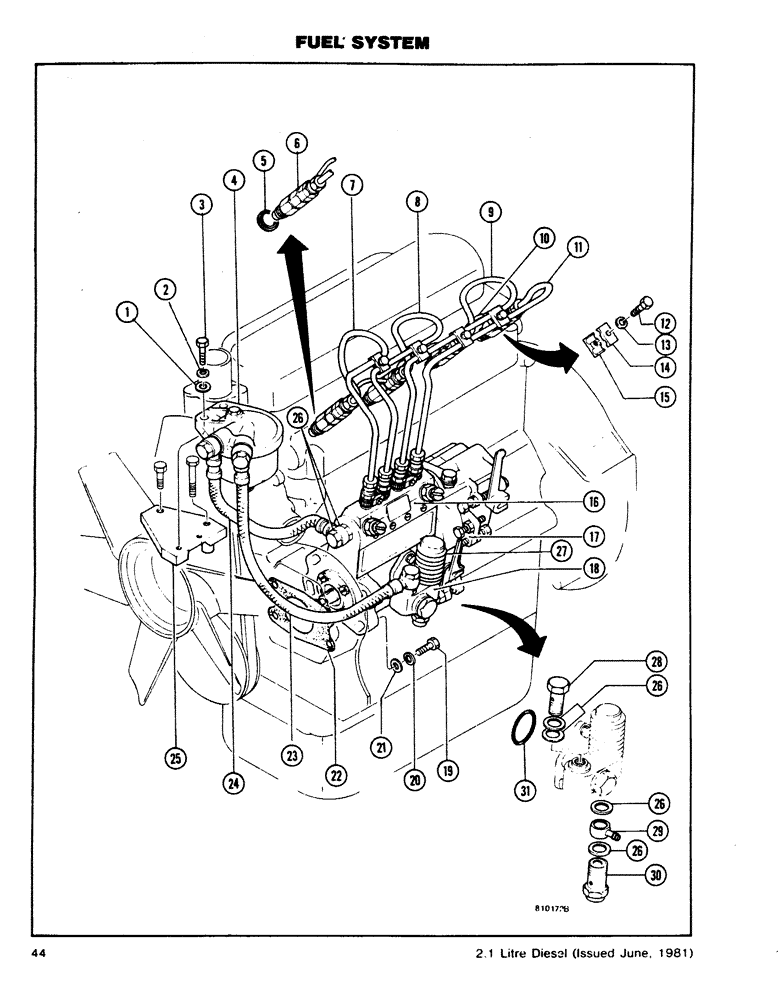

Запчасти Case DH4B (44) - FUEL SYSTEM (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
H758680
WASHER
- Flat
2шт.
2
892-1108
LOCK WASHER,M8
2шт.
3
814-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
2шт.
4
H659516
FILTER, FUEL
FUEL FILTER ASSEMBLY - (See Figure 48)
1шт.
5
H411132
GASKET
- Nozzle
4шт.
6
H659508
TUBE
INJECTOR ASSEMBLY
4шт.
7
H411140
PIPE
- Injection Pump to no. 1 Cylinder
1шт.
H438612 Injection tube #1 After S/N 159664
1шт.
8
H411165
INJECTION PIPE
PIPE - Injection Pump to no. 2 Cylinder
1шт.
102819A1 Injection Tube #2 After S/N 159664
1шт.
9
H411173
FUEL TUBE
PIPE - Injection Pump to no. 3 Cylinder
1шт.
102821A1 Injection Tube #3 After S/N 159665
1шт.
10
H411199
FUEL TUBE
PIPE - Injection Pump to no. 4 Cylinder
1шт.
102822A1 Injection Tube #4 After S/N 159665
1шт.
11
H412213
PIPE
- Fuel leak off
1шт.
H412213 subs to N14101 prior to eng. S/N 159665, use 102823A1 after S/N 159665
1шт.
12
814-6016
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
4шт.
13
892-1106
LOCK WASHER,M6
4шт.
14
H411181
CLAMP
A
4шт.
15
H411207
CLAMP
B
4шт.
H664813
PUMP, FUEL INJECTION
INJECTION PUMP ASSEMBLY 40 hp only
1шт.
H659870
PUMP, FUEL INJECTION
INJECTION PUMP ASSEMBLY 50 hp only
1шт.
16
NSS
NOT SOLD SEPARAT
PUMP - Injection
1шт.
17
NSS
NOT SOLD SEPARAT
GOVERNOR ASSEMBLY
1шт.
18
H659888
FEED PUMP
ASSEMBLY
1шт.
Sealing washer P/N N13214 pump kit N13215 and stud N13202.
1шт.
19
814-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
4шт.
20
892-1110
LOCK WASHER,M10
4шт.
21
H758698
WASHER
- Flat
4шт.
22
H412221
GASKET
1шт.
23
H412239
HOSE
PIPE - Fuel Supply 330 mm (13.0 in.)
1шт.
24
H412247
PIPE ASSY.
PIPE - Fuel Supply 250 mm (9.8 in.)
1шт.
25
H411231
BRACKET
- Fuel Filter
1шт.
26
H412437
GASKET
WASHER - Copper
8шт.
27
H421388
BELLOWS
1шт.
28
H421545
BOLT
- Joint
1шт.
29
H421552
EYE
JOINT - Eye
1шт.
30
H421560
FILTER
- Gouze
1шт.
31
H421578
O-RING
- Feed Pump
1шт.
Ref.s 10 and 11 Should be switched on the Art.
1шт.
Выбрано товаров: 40
