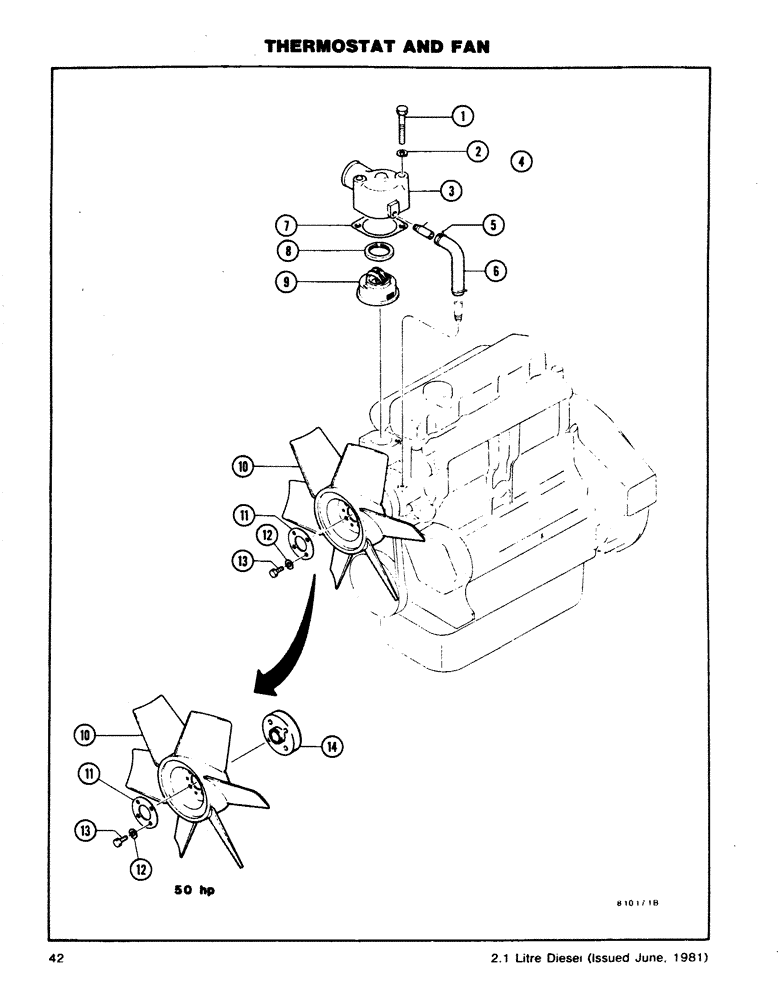

Запчасти Case DH4B (42) - THERMOSTAT AND FAN (10) - ENGINE

1

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

(Replaces 814-8050) Hex, M8 x 60, 8.8

2шт.

2

892-1108

LOCK WASHER,M8

2шт.

H664680

ELBOW

THERMOSTAT COVER ASSEMBLY

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - Thermostat

1шт.

4

H412189

PIPE

1шт.

5

H410969

CLAMP

- Hose

2шт.

6

H411108

HOSE

Bypass

1шт.

7

H411090

GASKET

- Cover

1шт.

8

H411116

GASKET

- Thermostat

1шт.

9

H411124

THERMOSTAT

1шт.

10

H412197

FAN

push type, 40 hp only

1шт.

10

H421180

NO LONGER SERVICED

FAN - pull type, 50 hp only

1шт.

11

H412205

PLATE

40 hp only

1шт.

12

892-1108

LOCK WASHER,M8

4шт.

13

814-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

40 hp only Hex, M8 x 20, 8.8

4шт.

13

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

50 hp only Hex, M8 x 35, 8.8

4шт.

14

H421404

FAN

SPACER - Fan, 50 hp only

1шт.
