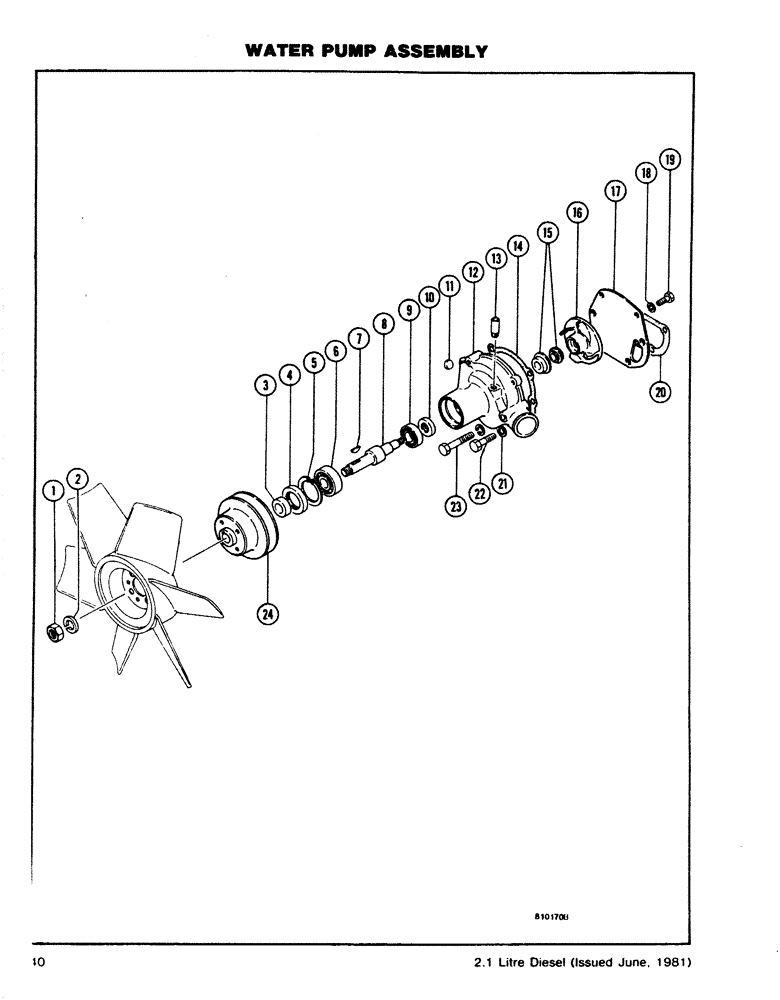

Запчасти Case DH4B (40) - WATER PUMP ASSEMBLY (10) - ENGINE

H659482

PUMP

WATER PUMP ASSEMBLY

1шт.

1

525-5105

NUT,M14 x 1.5, Cl 8

LOCK NUT

1шт.

2

892-1114

LOCK WASHER,M14

WASHER - Lock

1шт.

3

H411082

SPACER

- Water Pump

1шт.

4

H412114

OIL SEAL

- Oil

1шт.

5

H758755

RING, SNAP

RING - Snap

1шт.

6

H758821

BALL BEARING

BEARING - Ball

1шт.

7

H758730

KEY

- Woodruff

1шт.

8

H411074

SHAFT

1шт.

9

H758839

BALL BEARING

BEARING - Ball

1шт.

10

H412122

OIL SEAL

- Oil

1шт.

11

H412130

PLUG

- Expansion

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - Water Pump

1шт.

13

H412148

PIPE

1шт.

14

H412155

GASKET

1шт.

15

H411066

SEAL

- Unit

1шт.

16

H412163

IMPELLER

1шт.

17

H412171

COVER

1шт.

18

892-1108

LOCK WASHER,M8

2шт.

19

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

20

H411058

GASKET

1шт.

21

892-1110

LOCK WASHER,M10

4шт.

22

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

23

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

23

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

24

H411041

PULLEY

- Water Pump

1шт.

Spacer for fan on 50HP is N/P H421404.

1шт.
