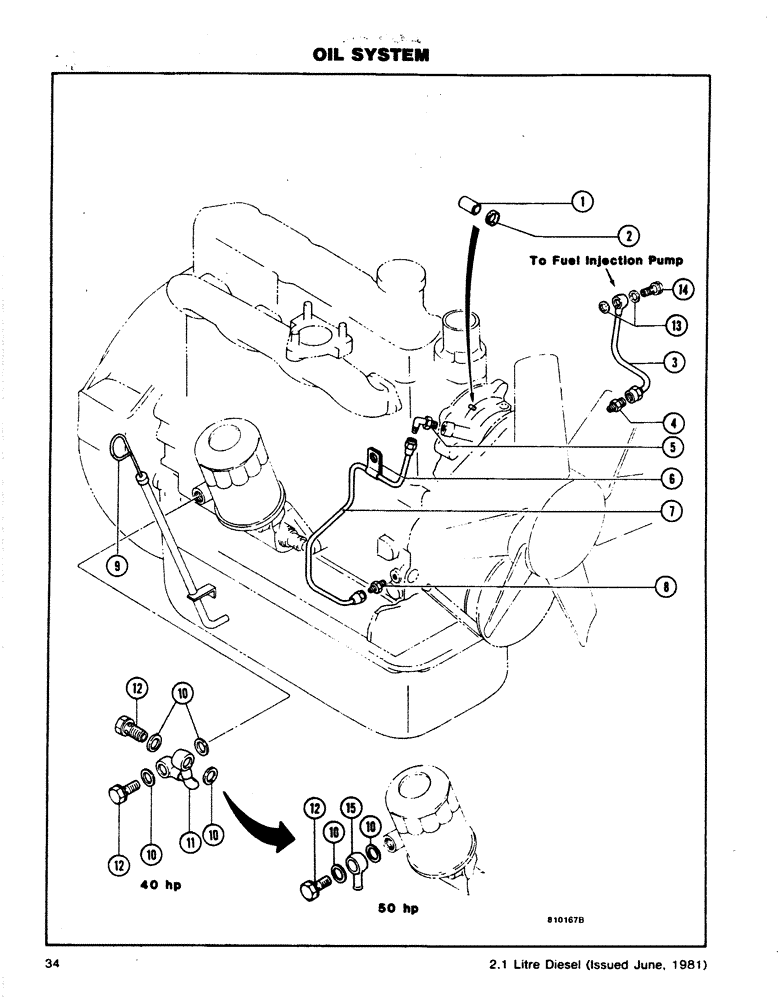

Запчасти Case DH4B (34) - OIL SYSTEM (10) - ENGINE

1

H412965

CONNECTOR, ELEC

CONNECTOR

1шт.

2

H412478

O-RING,16 mm ID x 22 mm OD

1шт.

3

H410951

PIPE,6.35" OD

- Oil (Crankcase to Injection Pump)

1шт.

4

H412973

CONNECTOR, ELEC

CONNECTOR

1шт.

5

H412981

ELBOW

1шт.

6

H412999

CLAMP

- Pipe

1шт.

7

H413005

PIPE

- Oil (Crankcase to Water Pump)

1шт.

8

H413013

CONNECTOR, ELEC

CONNECTOR

1шт.

9

H411009

DIPSTICK

GAUGE - Oil Level

1шт.

10

H411033

GASKET

40 hp only

4шт.

10

H411033

GASKET

50 hp only

2шт.

11

H411017

PIPE

- Oil, 40 hp only

1шт.

12

H410944

BOLT

- Joint, 40 hp only

2шт.

12

H410944

BOLT

- Joint, 50 hp only

1шт.

13

H421354

WASHER

- Copper

2шт.

14

H421370

BOLT

1шт.

15

H421529

FITTING

JOINT - Eye, 50 hp only

1шт.
