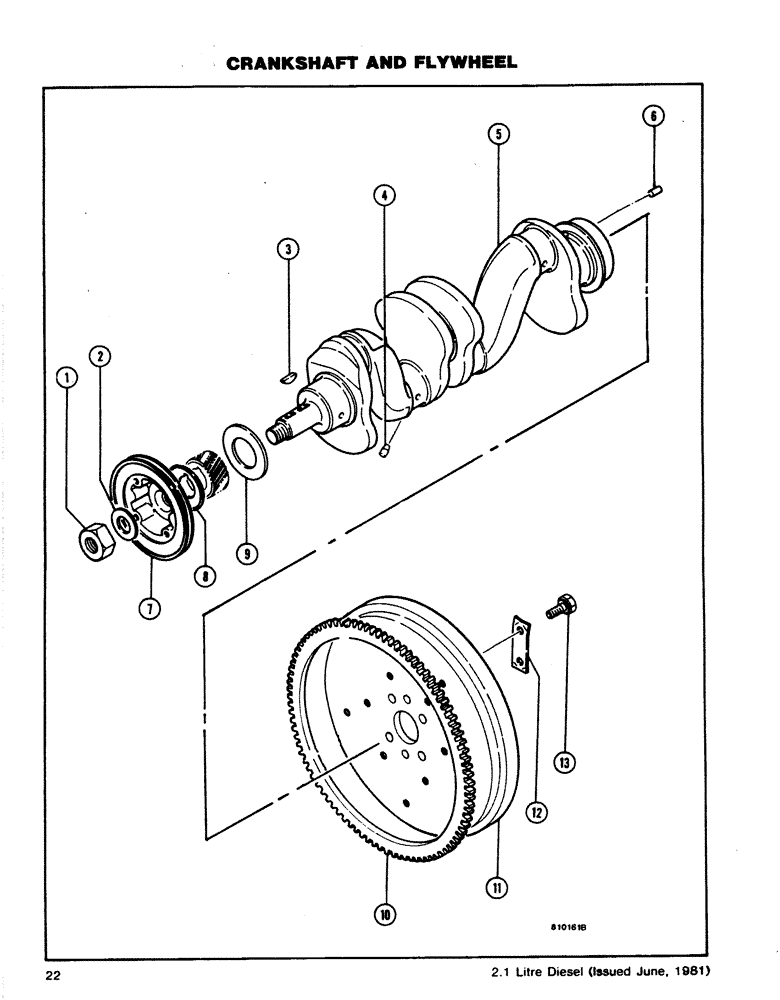

Запчасти Case DH4B (22) - CRANKSHAFT AND FLYWHEEL (10) - ENGINE

H665745

CRANKSHAFT

ASSEMBLY (replaces H659433)

1шт.

1

525-5104

NUT,M24 x 1.5, Cl 8

1шт.

2

H410696

WASHER

1шт.

3

H758748

KEY

- Woodruff

2шт.

4

H412023

PLUG

4шт.

5

NSS

NOT SOLD SEPARAT

CRANKSHAFT

1шт.

6

H758714

DOWEL

PIN - Dowel

2шт.

7

H410704

PULLEY

- Crankshaft

1шт.

8

H410712

PLATE

- Battle

1шт.

9

H410720

PLATE, THRUST

PLATE - Thrust

1шт.

H659441

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY

1шт.

For S.N. 133643 use N13640

1шт.

10

H410738

RING

GEAR - Ring

1шт.

Another Ring Gear is used on later units N13487

1шт.

11

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

12

H410746

WASHER

- Lock, 40 hp only

2шт.

13

H410753

BOLT

40 hp only

4шт.
