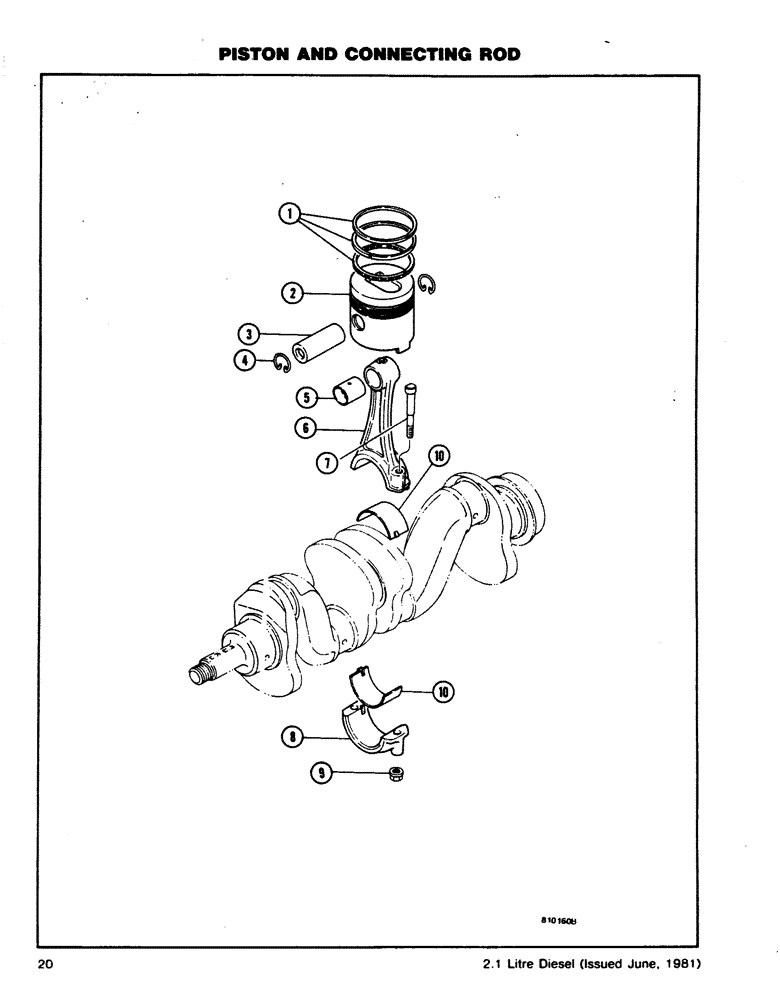

Запчасти Case DH4B (20) - PISTON AND CONNECTING ROD (10) - ENGINE

1

H664516

SEAL PACKAGE

PISTON RING SET - (Standard)

1шт.

When replacing a piston or a piston ring set, replace both if your engine has a serial number before No. 130517.

1шт.

1

H664524

RING, SET

PISTON RING SET - Oversize (U.S. .010 in.)

1шт.

When replacing a piston or a piston ring set, replace both if your engine has a serial number before No. 130517.

1шт.

1

H664532

RING, SET

PISTON RING SET - Oversize (U.S. .020 in.)

1шт.

When replacing a piston or a piston ring set, replace both if your engine has a serial number before No. 130517.

1шт.

1

H664540

PISTON RING SET

_ Oversize (U.S. .030 in.)

1шт.

When replacing a piston or a piston ring set, replace both if your engine has a serial number before No. 130517.

1шт.

2

H420018

PISTON

- (Standard)

4шт.

When replacing a piston or a piston ring set, replace both if your engine has a serial number before No. 130517.

1шт.

2

H420281

PISTON

- Oversize (U.S. .010 in.)

4шт.

When replacing a piston or a piston ring set, replace both if your engine has a serial number before No. 130517.

1шт.

2

H420299

PISTON

- Oversize (U.S. .020 in.)

4шт.

When replacing a piston or a piston ring set, replace both if your engine has a serial number before No. 130517.

1шт.

2

H420307

PISTON

- Oversize (U.S. .030 in.)

4шт.

When replacing a piston or a piston ring set, replace both if your engine has a serial number before No. 130517.

1шт.

3

H410639

SPLIT PIN/SAFETY PIN

PIN - Piston

4шт.

4

H410647

RING, SNAP

RING - Snap

8шт.

H659425

ROD

CONNECTING ROD ASSEMBLY

4шт.

5

H410654

BUSHING

4шт.

6

NSS

NOT SOLD SEPARAT

ROD - Connecting

4шт.

7

H410662

STEP BOLT,M10 x 1 x 75mm

BOLT

8шт.

8

NSS

NOT SOLD SEPARAT

CAP - Connecting Rod

4шт.

9

H410670

NUT

8шт.

10

H410688

HALF-BEARING, CRANKS

BEARING - Connecting Rod (Standard)

8шт.

10

H411355

BEARING

- Connecting Rod, Undersize (U.S. .010 in.)

8шт.

10

H412007

BEARING

- Connecting Rod, Undersize (U.S. .020 in.)

8шт.

10

H412015

BEARING

- Connecting Rod, Undersize (U.S. .030 in.)

8шт.
