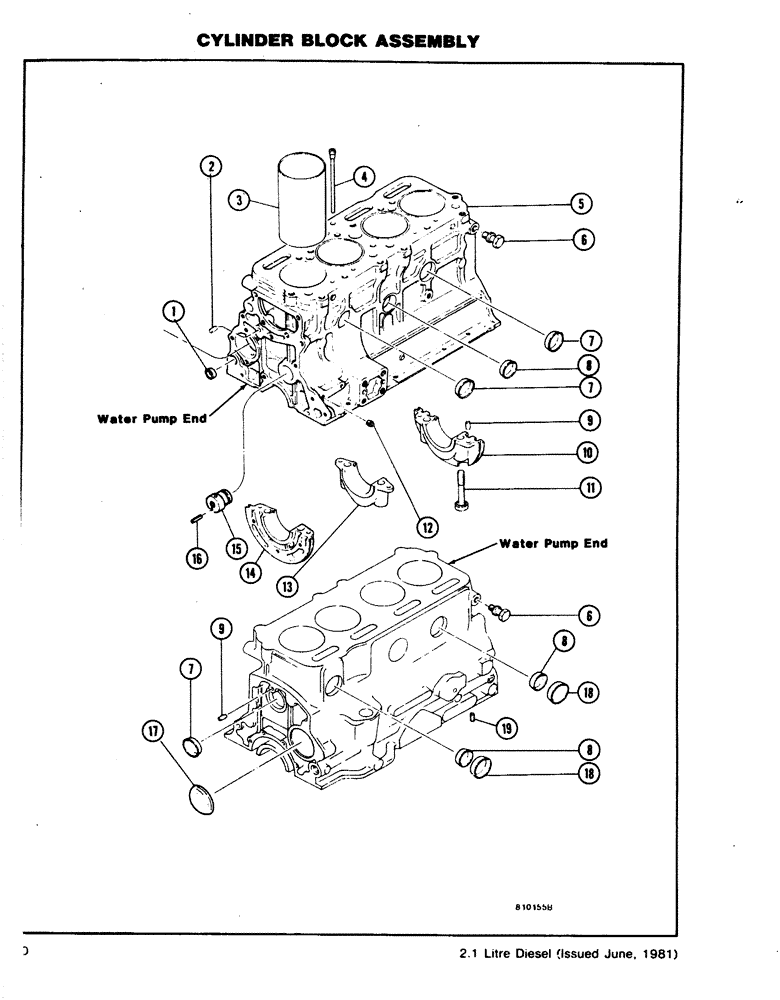

Запчасти Case DH4B (10) - CYLINDER BLOCK ASSEMBLY (10) - ENGINE

H661041

CRANKCASE

CYLINDER BLOCK ASSEMBLY

1шт.

1

H411751

CAP

- Sealing

2шт.

2

H410399

DOWEL

PIN - Gear Case Dowel

2шт.

3

H410407

SLEEVE

- Cylinder (Standard)

4шт.

3

H411330

SLEEVE

- Cylinder (Oversize)

4шт.

4

H410415

PIPE,144 mm L

- Oil (Cylinder Block To Cylinder Head)

1шт.

5

NSS

NOT SOLD SEPARAT

CYLINDER BLOCK

1шт.

6

H411819

BOLT AND NUT

2шт.

7

H411827

CAP

- Sealing

3шт.

8

H411835

CAP

- Sealing

3шт.

9

H758706

DOWEL

PIN - Dowel

8шт.

10

NSS

NOT SOLD SEPARAT

CAP - Bearing no. 3

1шт.

11

H410423

BOLT

6шт.

12

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - Taper

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - Bearing no. 2

1шт.

14

NSS

NOT SOLD SEPARAT

CAP - Bearing no. 1

1шт.

H413948

SHAFT

IDLER SHAFT ASSEMBLY

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - Idler

1шт.

16

H758722

PIN

- Spring

1шт.

17

541-65

PLUG

- Expansion

1шт.

18

H411843

CAP

- Sealing

2шт.

19

H410431

PLUG

- Rubber (For no. 1 and no. 3 Bearing Cap)

2шт.

Cap for seal crank case P/N N14093.

1шт.
