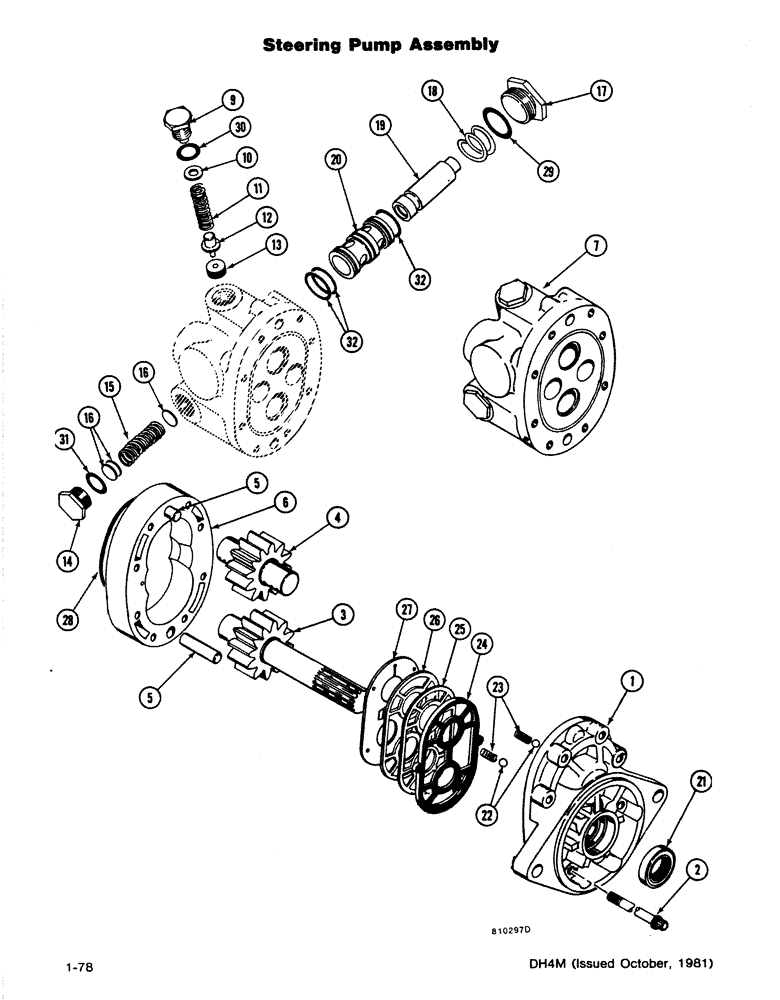

Запчасти Case DH4B (1-78) - STEERING PUMP ASSEMBLY (41) - STEERING

H661702

PUMP

HYDRAULIC PUMP ASSEMBLY, Includes: Refs. 1-32

1шт.

1

H233528

PLATE

FRONT PLATE ASSEMBLY

1шт.

2

166-32

12 PT SCREW,Flg, 5/16" - 18 x 2 1/2", Gr 8

SCREW - Cap

4шт.

166-31

12 PT SCREW,Flg, 5/16" - 18 x 2 1/4", Gr 8

SCREW - Cap

4шт.

3

H663831

GEAR

DRIVE GEAR ASSEMBLY

1шт.

4

H563007

GEAR

IDLER GEAR ASSEMBLY

1шт.

5

H753855

GUIDE

PIN - Dowel

2шт.

6

H20280

BODY

1шт.

7

H663849

KIT

- Back Plate Repair, Includes: Refs. 8-32

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - Back

1шт.

L33496

PLUG

ASSEMBLY - (Includes O-Ring), Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

PLUG

1шт.

10

F12267

WASHER

1шт.

11

L33609

SPRING

1шт.

12

H138362

SPOOL

POPPET ASSEMBLY

1шт.

13

NSS

NOT SOLD SEPARAT

SEAT

1шт.

L33501

PLUG

ASSEMBLY - (Includes O-Ring), Includes: Ref. 14

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG

1шт.

15

L33610

SPRING

1шт.

16

F33506

DISC

1шт.

L33509

PLUG

ASSEMBLY, Includes: Ref. 17

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG

1шт.

18

F21353

SPRING

1шт.

19

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

F88938

GASKET KIT

KIT- Seal Repair, Includes: Refs. 21-31

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - Shaft

1шт.

22

NSS

NOT SOLD SEPARAT

BALL

2шт.

23

NSS

NOT SOLD SEPARAT

SPRING

2шт.

24

NSS

NOT SOLD SEPARAT

SEAL - Diaphragm

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - Protector

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - Backup

1шт.

27

NSS

NOT SOLD SEPARAT

DIAPHRAGM

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING

3шт.
