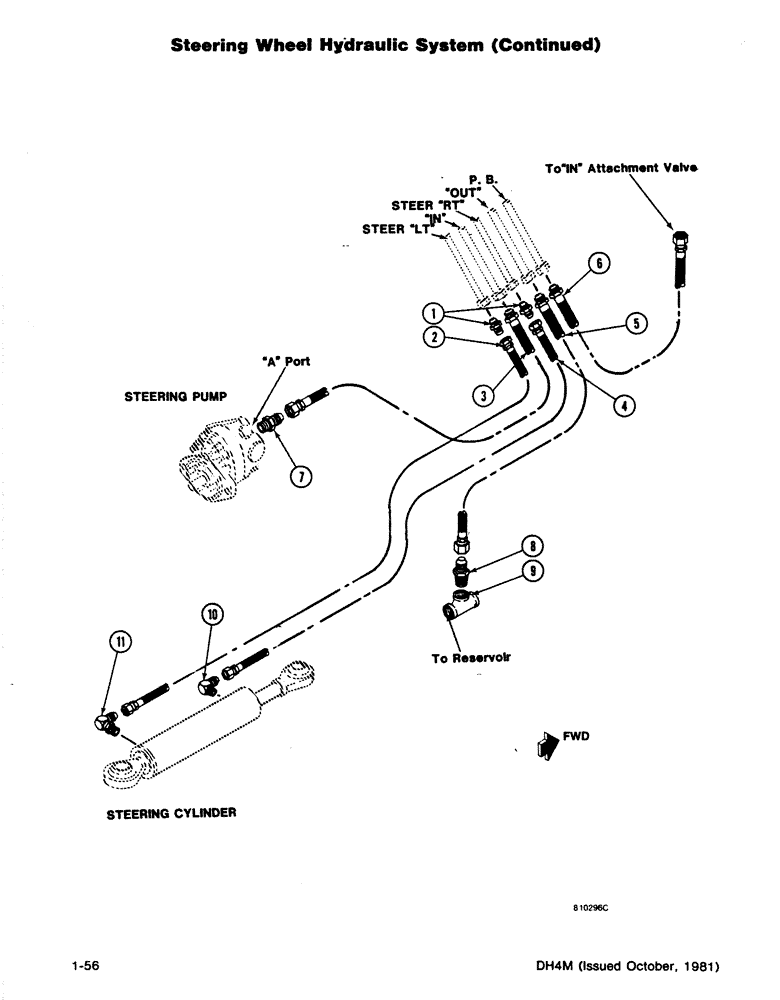

Запчасти Case DH4B (1-56) - STEERING WHEEL HYDRAULIC SYSTEM (CONTINUED) (41) - STEERING

1

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - (9/16 JIC M)

2шт.

2

H432120

HYDRAULIC HOSE,6.35 mm ID x 1050.00 mm, SAE 100R2A

(9/16 JIC FE Swv Ends) (Replaces H185736) 6.35 mm ID x 1050.00 mm, SAE 100R2A

1шт.

3

H203307

HOSE ASSY.

HOSE - 3/8 x 24 (3/4 JIC Fe Swv x 3/4 JIC M)

1шт.

4

H246322

HYDRAULIC HOSE,6.35 mm ID x 1524.00 mm, SAE 100R1

6.35 mm ID x 1524.00 mm, SAE 100R1

1шт.

5

H200386

HOSE - 3/8 x 57 (3/4 JIC Fe Swv x 3/4 JIC M)

1шт.

6

H354837

HOSE,0.38" ID x 58.00", SAE 100R1A

1шт.

7

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 Barb)

1шт.

8

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

CONNECTOR - (3/4 MP x 3/4 JIC M)

1шт.

9

221-425

FITTING,3/4" NPT

TEE - Pipe (3/4)

1шт.

10

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 deg. (3/8 MP x 9/16 JIC M)

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 deg. (9/16 ORB x 9/16 JIC M)

1шт.
