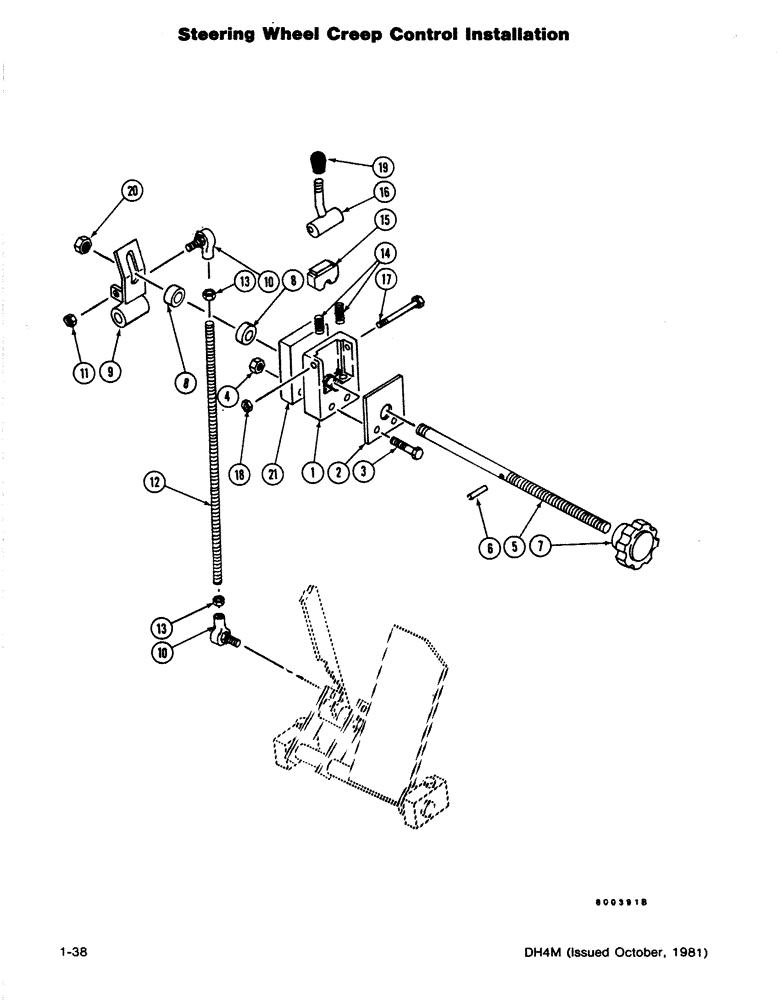

Запчасти Case DH4B (1-38) - STEERING WHEEL CREEP CONTROL INSTALLATION (41) - STEERING

1

H608885

CONTROL BLOCK

BASE - Control

1шт.

2

H233767

COVER ASSY

PLATE - Cover

1шт.

3

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

5

H255158

CONTROL BLOCK

SHAFT - Creep Control

1шт.

6

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

7

H239004

KNOB

1шт.

8

H87452

SPACER

DOUBLER

2шт.

9

H659292

ARM ASSY.

BELLCRANK - Creep Control

1шт.

10

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - Ball

2шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

12

H404616

LINK

- Creep Control

1шт.

13

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

14

H253864

VALVE SPRING

SPRING

2шт.

15

H608877

BLOCK

- Half

1шт.

16

H601203

CAM

- Creep Control

1шт.

17

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- NC HH (/14 x 2-3/4)

1шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

19

A14051

GRIP

KNOB

1шт.

20

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

1шт.

21

H409706

BLOCK

- Control (replaces H237701)

1шт.
