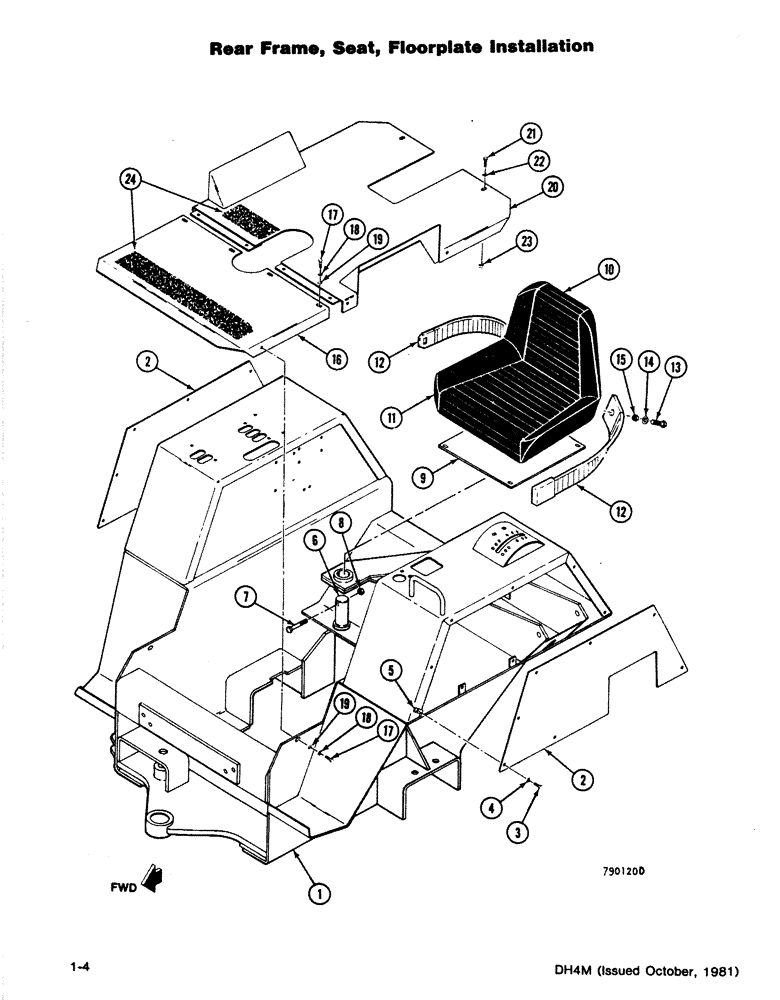

Запчасти Case DH4B (1-04) - REAR FRAME, SEAT, FLOORPLATE INSTALLATION (39) - FRAMES AND BALLASTING

1

H637116

FRAME

- Rear

1шт.

2

H372953

PANEL

- Side Console, Includes: Refs. 3, 4

2шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

18шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

18шт.

5

H346650

NUT

- U (5/16)

18шт.

6

H315531

AXLE PIN

PIN - Seat Mounting

1шт.

7

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

1шт.

9

H623496

SEAT

PLATE - Seat Mounting

1шт.

H594556

SEAT

ASSEMBLY, Includes: Refs. 10, 11

1шт.

10

N9035

CUSHION

- Seat Back (replaces H297515)

1шт.

11

N9036

CUSHION

- Seat (replaces H297507)

1шт.

12

H594564

SAFETY BELT ,3.00" W

3.00" W

1шт.

13

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- NF HH (7/16 x 1 1/4)

2шт.

14

H277566

WASHER

- Flat

2шт.

15

131-1170

LOCK NUT,7/16"-20, GA

NUT, LOCK, 7/16"-20, GA

2шт.

16

H376319

FLOOR

BOARD - Front, Includes: Refs. 17-19

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

19

195-521

WASHER,5/16", SAE

- Flat (5/16)

6шт.

20

H640649

DIVIDER BOARD

FLOORBOARD - Rear, Includes: Refs. 21-23

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

195-521

WASHER,5/16", SAE

- Flat (5/16)

2шт.

23

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

24

651187

STRIP - Anti-Skid (3" x 153")

1шт.
