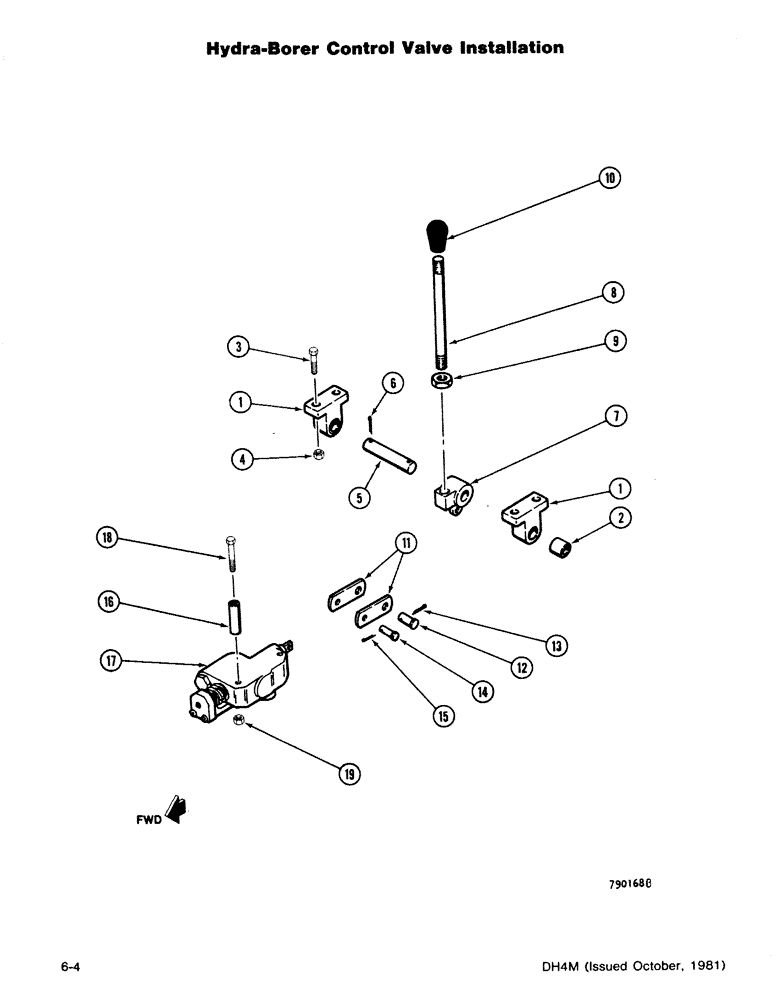

Запчасти Case DH4B (6-04) - HYDRA-BORER CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H558411

BEARING

BUSHING ASSEMBLY - Shaft Mounting, Includes: Refs. 2-4

2шт.

2

H151894

BUSHING

1шт.

3

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

4шт.

5

H262501

SHAFT

- Control

1шт.

6

132-26

COTTER PIN

PIN, Split (Cotter), 3/32" x 3/4"

1шт.

7

H275263

LEVER

CASTING - Lever

1шт.

8

H191916

ROD

HANDLE

1шт.

9

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

10

A14051

GRIP

KNOB

1шт.

11

H379057

LINK

Includes: Refs. 12-15

2шт.

12

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

1шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

A35279

PIN - Clevis (3/16 x 57/64)

1шт.

15

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

16

H253005

SPACER

- Valve

2шт.

17

H544718

LOCK VALVE

CONTROL VALVE ASSEMBLY - Hydra-Borer (See figure 6-14), Includes: Refs. 18, 19

1шт.

18

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- NC HH (5/16 x 4-1/2)

2шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.
