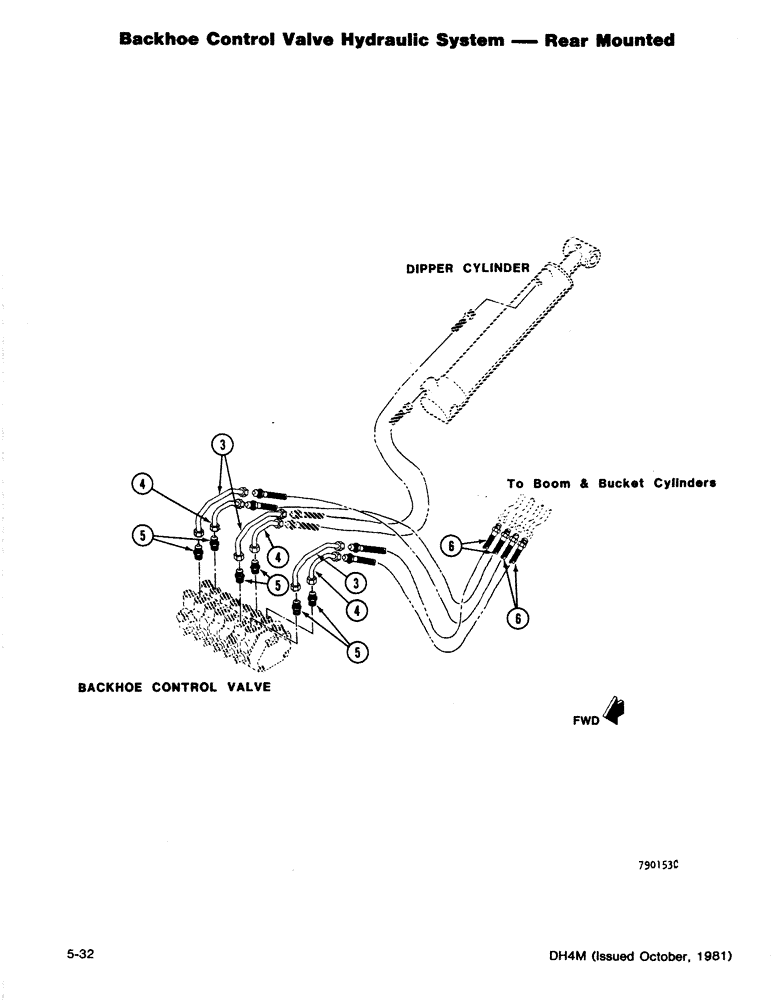

Запчасти Case DH4B (5-32) - BACKHOE CONTROL VALVE HYDRAULIC SYSTEM - REAR MOUNTED (35) - HYDRAULIC SYSTEMS

3

H560185

TUBE,0.5" OD x 7.094, 2" L

- Long

3шт.

4

H560177

TUBE,0.5" OD

- Short

3шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

6шт.

6

H278994

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm

(3/4 JIC M Ends) 9.52 mm ID x 889.00 mm

4шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- (3/4)

1шт.
