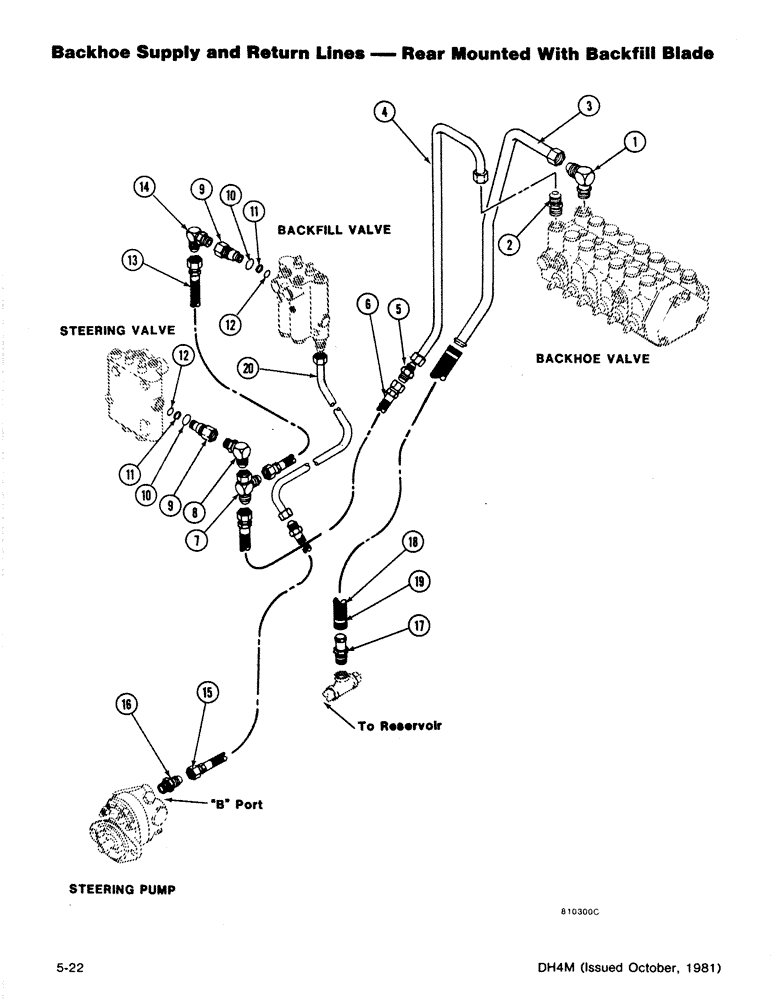

Запчасти Case DH4B (5-22) - BACKHOE SUPPLY AND RETURN LINES - REAR MOUNTED WITH BACKFILL BLADE (35) - HYDRAULIC SYSTEMS

1

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree (7/8 ORB x 1-1/16 JIC M)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - (7/8 ORB x 7/8 JIC M)

1шт.

3

H645044

TUBE ASSY.,19.05 mm OD

TUBE - Return

1шт.

4

H645051

TUBE ASSY.,15.88 mm OD

TUBE - Pressure

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - (7/8 JIC M)

1шт.

6

H352575

HOSE,0.50" ID x 34.00, SAE 100R2A

1шт.

7

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

- (7/8 JIC M x 7/8 JIC Fe Swv x 3/4 JIC M)

1шт.

8

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 7/8 JIC M)

1шт.

H347906

FITTING

ADAPTER - Pressure Beyond, Includes: Refs. 9-12

2шт.

9

NSS

NOT SOLD SEPARAT

BODY

1шт.

10

D26872

O-RING

1шт.

11

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

12

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

13

H195750

HYDRAULIC HOSE,9.52 mm ID x 355.60 mm, SAE 100R1

9.52 mm ID x 355.60 mm, SAE 100R1

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree (3/4 ORB x 3/4 JIC M)

1шт.

15

H190041

HYDRAULIC HOSE,9.52 mm ID x 457.20 mm, SAE 100R1

9.52 mm ID x 457.20 mm

1шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

1шт.

17

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 MP x 3/4 Barb)

1шт.

18

H307777

HOSE ASSY.

HOSE - (3/4 x 18)

1шт.

19

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

20

H416081

TUBE ASSY.,12.7 mm OD

TUBE - Pressure

1шт.
