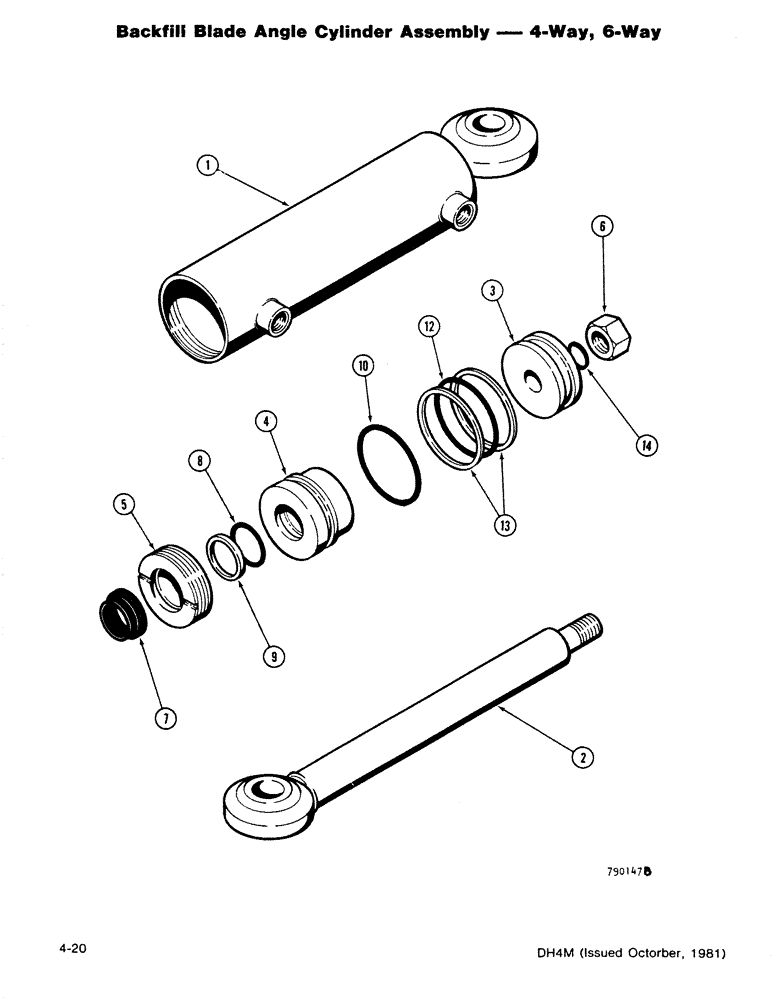

Запчасти Case DH4B (4-20) - BACKFILL BLADE ANGLE CYLINDER ASSEMBLY - 4-WAY, 6-WAY (35) - HYDRAULIC SYSTEMS

H641266

CYLINDER

ASSEMBLY - Backup Blade Angle, Includes: Refs. 1-14

1шт.

1

H649038

CYLINDER

BARREL

1шт.

2

H649046

ROD

- Piston

1шт.

3

H390377

PISTON

1шт.

4

H390385

BUSHING

BEARING

1шт.

5

H390393

RETAINER

1шт.

6

131-1251

LOCK NUT,3/4"-16, GC

NUT - NC Hex C/L (/34) (replaces 131-1131)

1шт.

H649053

SEAL ASSY.

KIT - Seal Repair, Includes: Refs. 7-14

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - Rod Seal

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - Bearing Static Seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - Piston Seal

1шт.

13

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING - Rod Static Seal

1шт.
