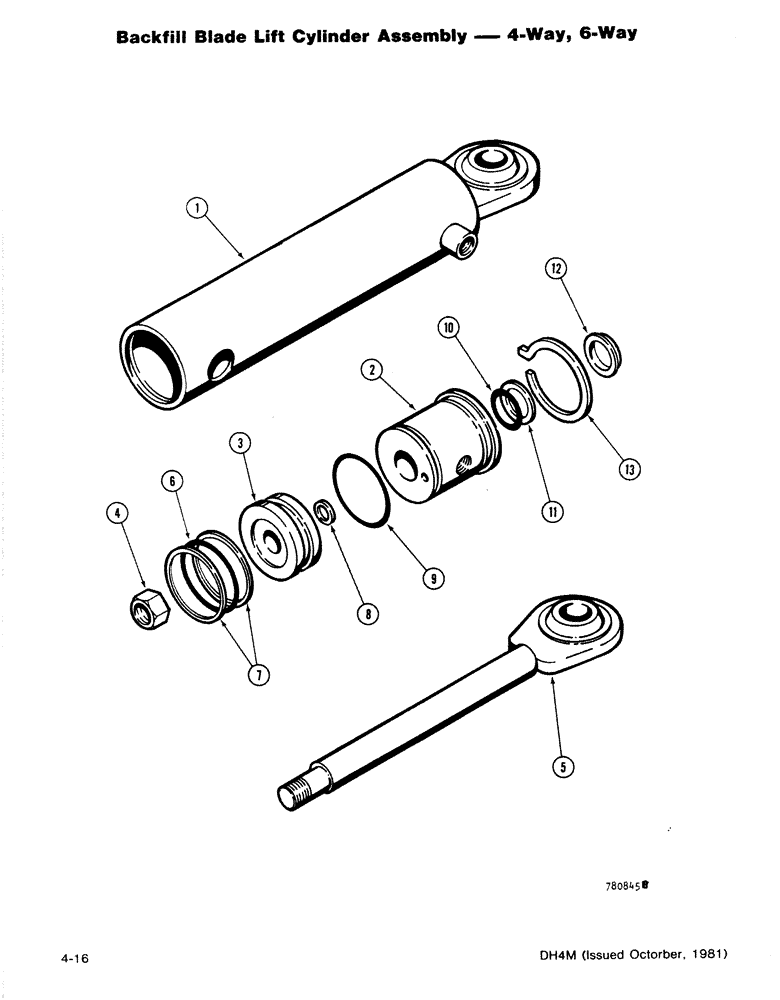

Запчасти Case DH4B (4-16) - BACKFILL BLADE LIFT CYLINDER ASSEMBLY - 4-WAY, 6-WAY (35) - HYDRAULIC SYSTEMS

H624528

STEERING CYLINDER

CYLINDER - Backfill Blade Lift, Includes: Refs. 1-13

1шт.

1

H636845

CYLINDER

BARREL

1шт.

2

H347765

GLAND

1шт.

3

H347757

PISTON

1шт.

4

131-68

LOCK NUT,5/8"-18

NUT - Piston

1шт.

5

H636852

PISTON ROD

ROD - Piston

1шт.

H630186

GASKET KIT

KIT - Seal Repair, Includes: Refs. 6-13

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - Piston

1шт.

7

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - Rod Static

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - Gland Static Seal

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - Rod Seal

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

13

NSS

NOT SOLD SEPARAT

RING - Gland Retaining

1шт.
