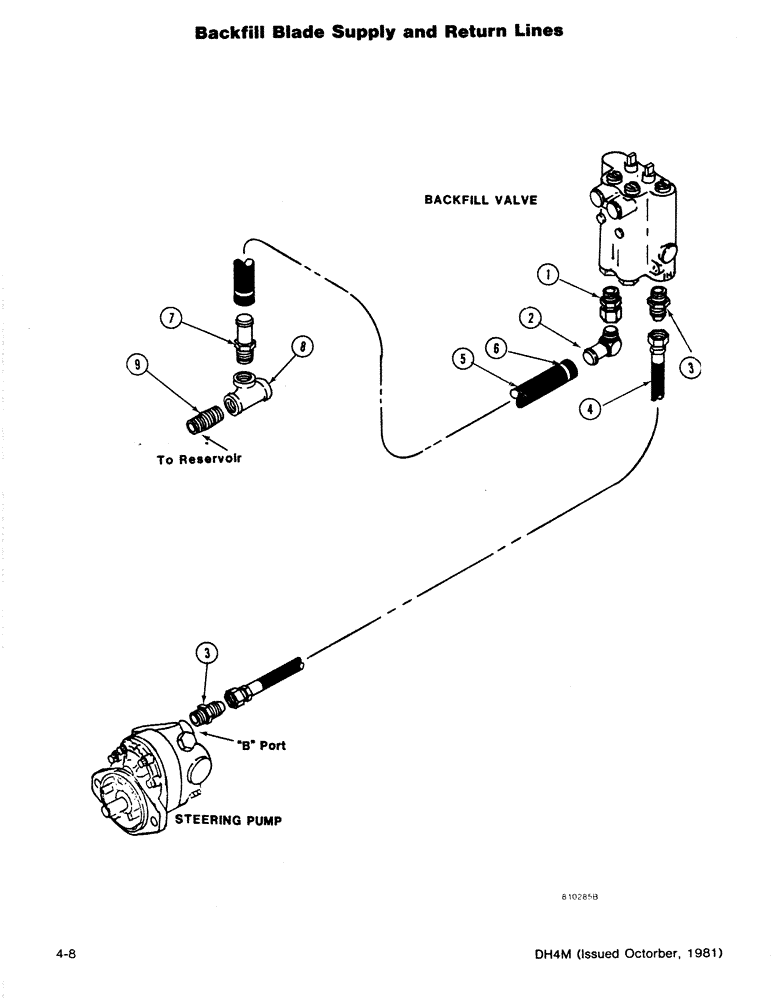

Запчасти Case DH4B (4-08) - BACKFILL BLADE SUPPLY AND RETURN LINES (35) - HYDRAULIC SYSTEMS

1

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

CONNECTOR - (3/4 ORB x 1/2 NPSM)

1шт.

2

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

- 90 degrees (1/2 NPTM x 3/4 Barb)

1шт.

3

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

2шт.

4

H375774

HOSE,9.53mm ID x 1500mm L, SAE 100R1

1шт.

5

358093

SHAFT

HOSE - 3/4 x 16

1шт.

6

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.

7

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 x 3/4 Barb)

1шт.

8

221-423

TEE,3/8" NPT

- (3/4 Pipe)

1шт.

9

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - (3/4)

1шт.
