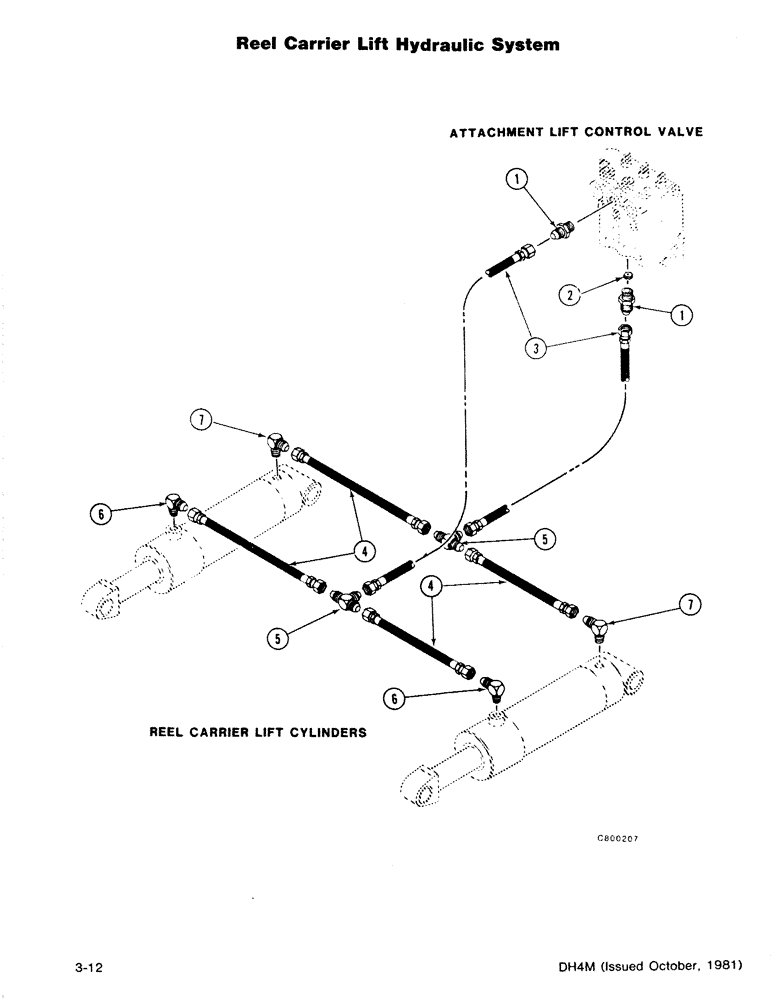

Запчасти Case DH4B (3-12) - REEL CARRIER LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

2шт.

2

H746875

SCREW

PLATE - Orifice (.043)

1шт.

3

H373647

HOSE

- 1/4 x 3300 mm 99/16 JIC Fe Swv Ends)

2шт.

P/N H432146 Hose for the DH4B.

1шт.

4

H234245

HYDRAULIC HOSE,6.35 mm ID x 406.40 mm, SAE 100R1

6.35 mm ID x 406.40 mm, SAE 100R1

4шт.

5

218-593

TEE,9/16"-18, 37 Degree

- (9/16 JIC M x 9/16 M x 9/16 JIC M)

2шт.

6

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degrees (1/4 MP x 9/16 JIC M)

2шт.

7

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

- 90 degrees (3/8 MP x 9/16 JIC M)

2шт.
