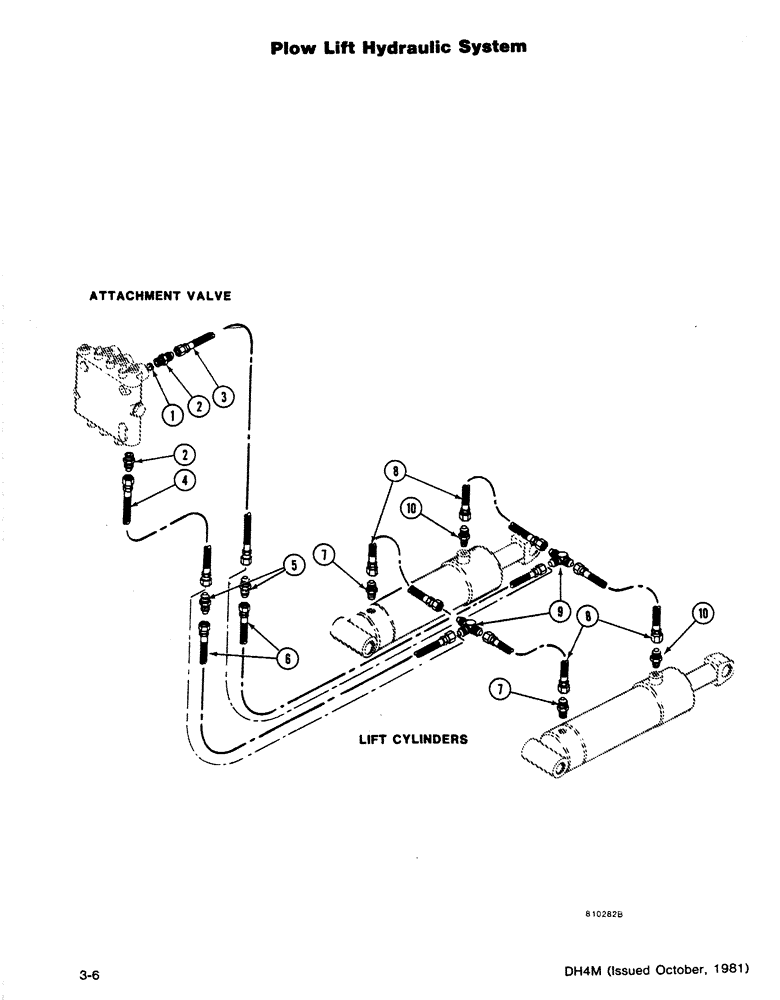

Запчасти Case DH4B (3-06) - PLOW LIFT HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H746875

SCREW

PLATE - Orifice

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - (9/16 ORB x 9/16 JIC M)

2шт.

3

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

P/N H432120 Hose for use on the DH4B.

1шт.

4

H218453

HYDRAULIC HOSE,6.35 mm ID x 838.20 mm, SAE 100R1

6.35 mm ID x 838.20 mm, SAE 100R1

1шт.

5

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - (9/16 JIC M Ends)

2шт.

Used only on Front Mounted Plow

1шт.

6

H253674

HOSE ASSY.

HOSE - 1/4 x 90 (91/6 JIC Fe Swv Ends)

2шт.

Used only on Front Mounted Plow

1шт.

7

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF (Replaces 218-1053)

2шт.

8

H234245

HYDRAULIC HOSE,6.35 mm ID x 406.40 mm, SAE 100R1

6.35 mm ID x 406.40 mm, SAE 100R1

4шт.

9

218-593

TEE,9/16"-18, 37 Degree

- (9/16 JIC M) (replaces 218-5093)

2шт.

10

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (9/16 JIC M x 1/4 MP)

2шт.
