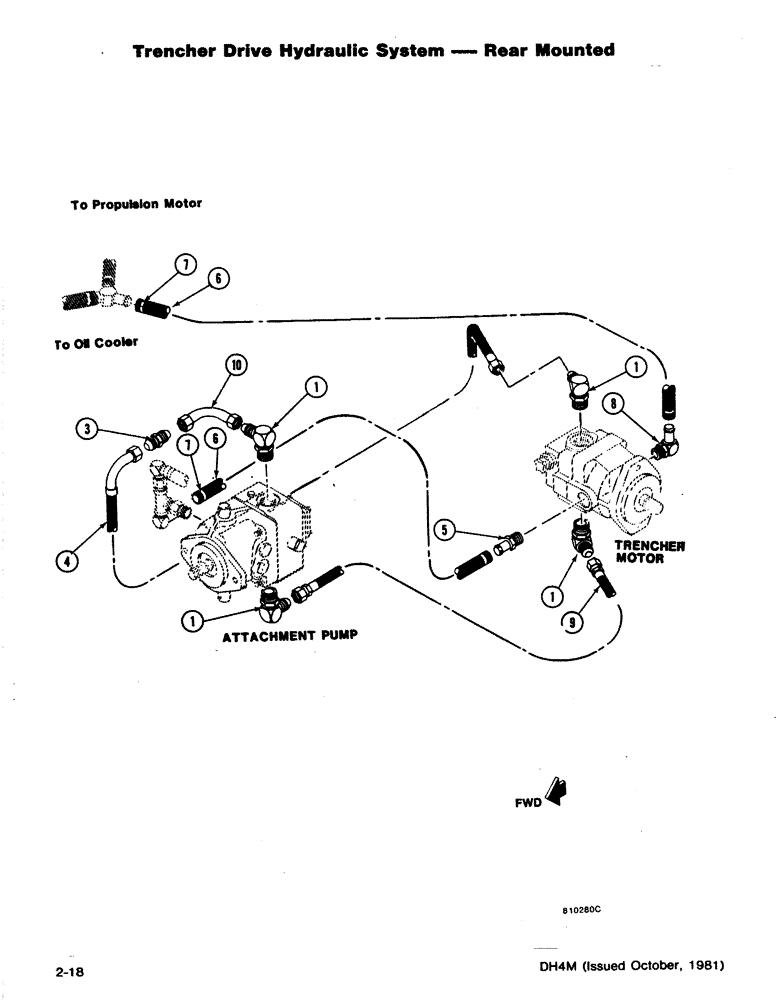

Запчасти Case DH4B (2-18) - TRENCHER DRIVE HYDRAULIC SYSTEM - REAR MOUNTED (35) - HYDRAULIC SYSTEMS

1

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1 5/16 x 1-1/16 JIC M)

4шт.

2

DELETED

1шт.

3

218-436

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC

CONNECTOR - (1-1/16 JIC M)

1шт.

4

H361501

HOSE

& TUBE - 3/4 x 92 (1-1/16 JIC Fe Swv Ends)

1шт.

5

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

CONNECTORS - (1-1/16 ORB x 3/4 Barb)

1шт.

6

H377899

HOSE - (3/4 x 84)

2шт.

7

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

4шт.

8

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1-1/16 ORB x 3/4 Barb)

1шт.

9

H380105

HOSE,0.75" ID x 84.65", SAE 100R9

1шт.

10

H421362

TUBE ASSY.,19 mm OD x 105, 38 mm L

TUBE - (3/4)

1шт.
