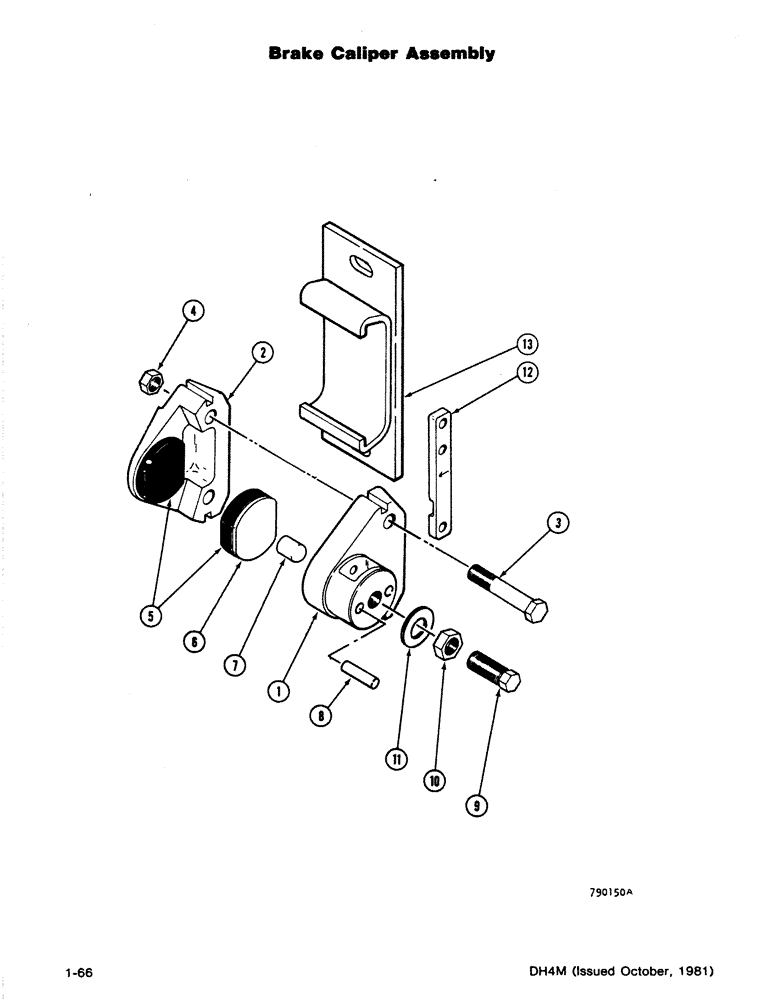

Запчасти Case DH4B (1-66) - BRAKE CALIPER ASSEMBLY (33) - BRAKES & CONTROLS

H638841

SET

CALIPER ASSEMBLY - Parking Brake, Includes: Refs. 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING (replaces H378497)

1шт.

2

NSS

NOT SOLD SEPARAT

ANVIL (replaces H378455)

1шт.

3

113-1306

BOLT - NC HH (3/8 x 2-1/4)

2шт.

4

131-1306

JAM NUT,Jam, 3/8"-16

NUT - NC Hex C/L (3/8)

2шт.

5

H378463

LINING

- Brake

2шт.

H378463 Kit, Brake Lining, is made up of Ref. 6 Plus Ref. 6

1шт.

6

H378471

PLATE ASSY.

PLATE - Backing

1шт.

7

H378489

PIN

- Actuator

1шт.

8

H378505

PULLEY

PIN - Actuator

2шт.

9

H378513

PIN

- Adjuster

1шт.

10

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

11

H378539

WASHER

1шт.

12

H378521

LEVER

1шт.

13

H641506

CALIPER

BRACKET

1шт.
