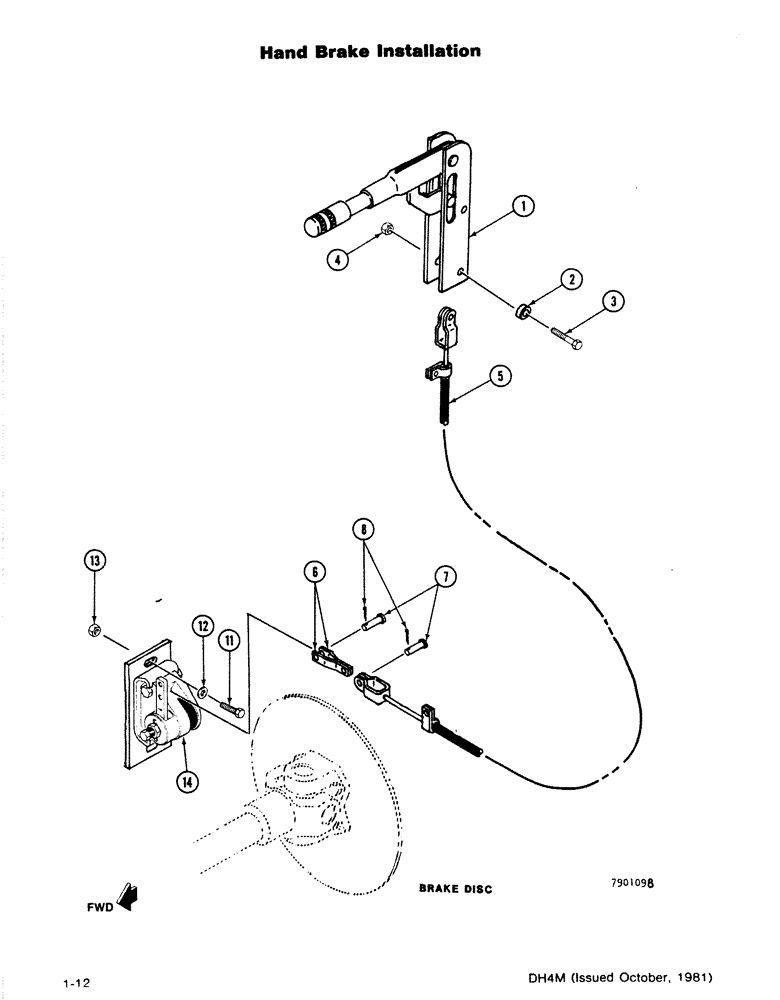

1
H506881
HANDLE
BRAKE CONTROL ASSEMBLY, Includes: Refs. 2-4
1шт.
2
H270538
SPACER
- Control
2шт.
3
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
4
131-176
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT Hex C/L (5/16)
2шт.
5
H629170
CABLE
- Brake
1шт.
Starting with S/N1215080, for mono stick units only.
1шт.
6
H376376
OFFSET LINK
LINK - Brake
2шт.
7
D23693
AXLE PIN
PIN - Clevis (1/4 x 1)
2шт.
8
133-320
PIN - Cotter (3/32 x 3/4)
2шт.
11
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
12
195-525
WASHER,3/8", SAE
2шт.
13
230-4216
LOCK NUT,3/8"-16, GA
NUT - NC Hex C/L (3/8)
2шт.
14
H638841
SET
CALIPER ASSEMBLY - Brake (See figure 1-66)
1шт.
