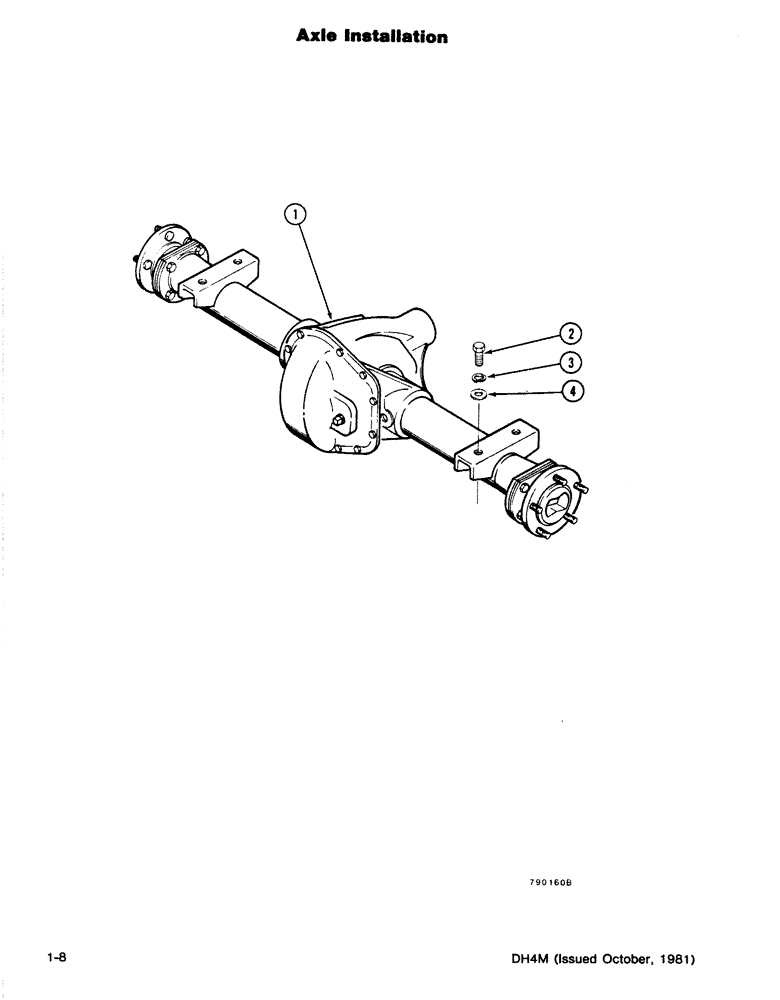

Запчасти Case DH4B (1-08) - AXLE INSTALLATION (25) - FRONT AXLE SYSTEM

1

H650705

AXLE, REAR

AXLE ASSEMBLY - rear (See figure 1-72)

1шт.

1

H650689

AXLE

ASSEMBLY - front, Includes: Refs. 2-4

1шт.

2

114-700

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5, Full Thd

- NC HH (3/4 x 1-1/2)

8шт.

3

195-545

WASHER,3/4", SAE

- Lock (3/4)

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Heat Treated Flat (25/32)

8шт.
