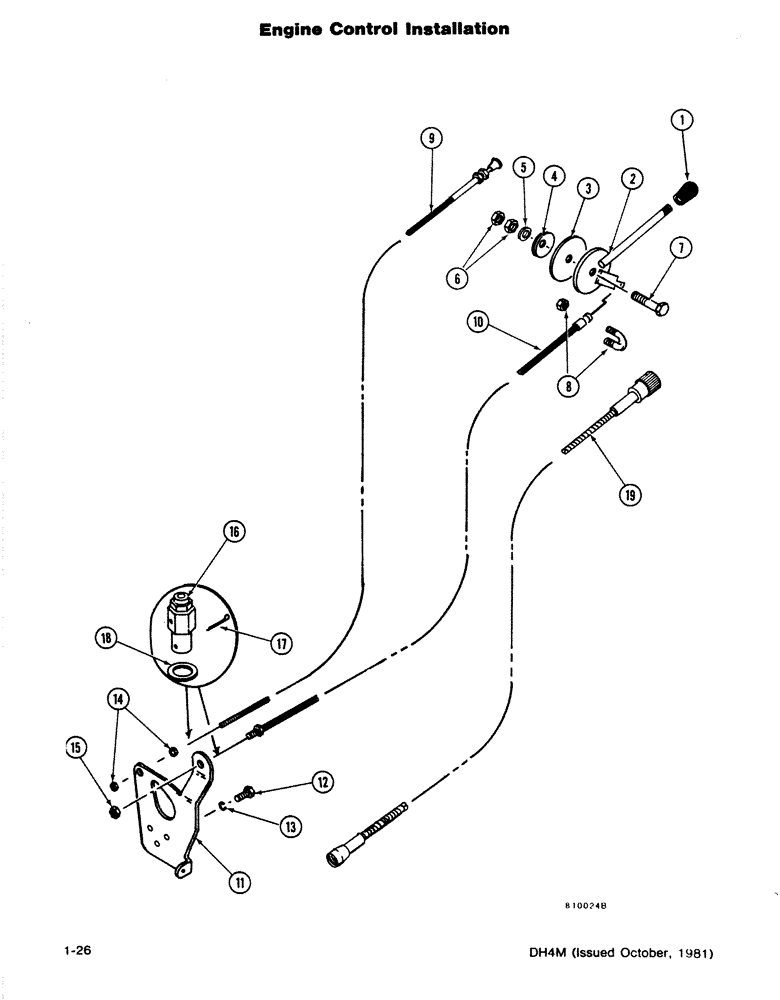

Запчасти Case DH4B (1-26) - ENGINE CONTROL INSTALLATION - 2.1 LITRE DIESEL ENGINE (10) - ENGINE

1

A14051

GRIP

KNOB - Throttle

1шт.

2

H664771

HANDLE

- Throttle

1шт.

3

R15071

DISC

- Friction

1шт.

4

R14771

WASHER

- Cupped

1шт.

5

195-525

WASHER,3/8", SAE

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex (3/8 - Lock)

2шт.

7

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

8

H381269

U-BOLT

- With Nuts

1шт.

9

H374934

CABLE

- Motor Stop

1шт.

10

H383422

CABLE

- Throttle

1шт.

11

H405183

BRACKET

- Throttle

1шт.

12

814-6014

BOLT,Hex, M6 x 1 x 14mm, Cl 8.8, Full Thd

- HH (M6 x 14)

3шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

14

H243782

NUT

- Conduit (3/16)

2шт.

15

H99101

NUT

- Conduit (1/4)

1шт.

16

H327494

JOINT TURNING

STOP - Wire

2шт.

17

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

18

195-518

WASHER,1/4", SAE

- Flat (1/4)

2шт.

19

H413591

CABLE PULLING GRIP

CABLE - Tachometer Drive

1шт.
