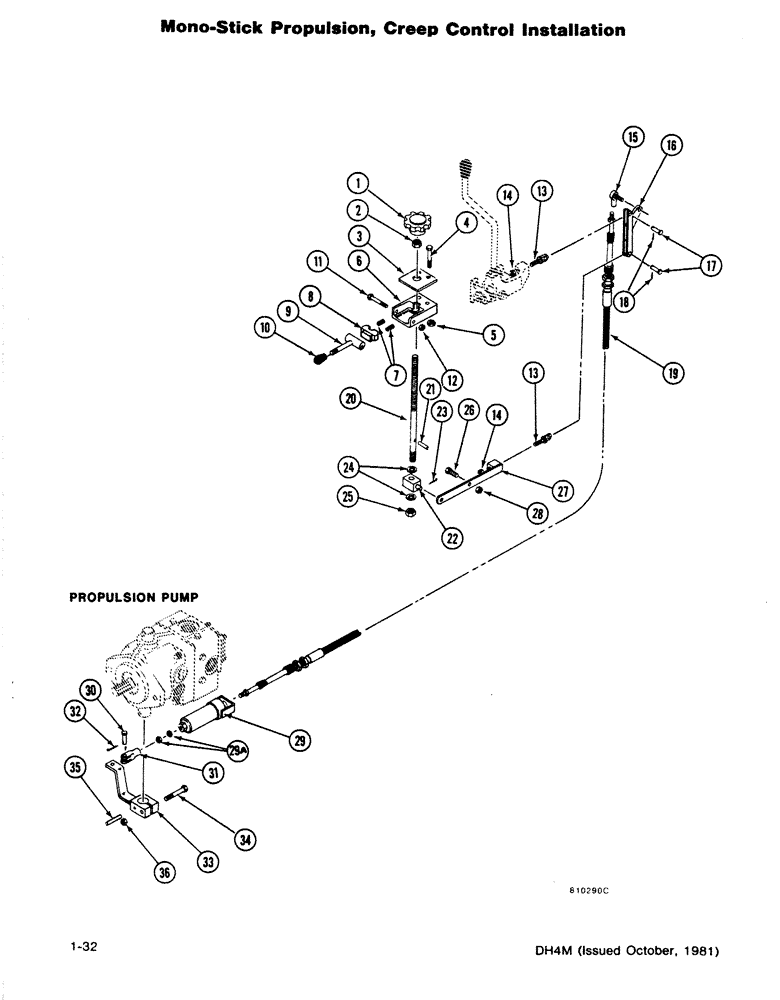

Запчасти Case DH4B (1-32) - MONO-STICK PROPULSION, CREEP CONTROL INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
H239004
KNOB
1шт.
2
129-145
JAM NUT,Jam, 1/2"-13, G5
1шт.
3
H233767
COVER ASSY
PLATE - Cover
1шт.
4
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
2шт.
6
H608885
CONTROL BLOCK
BASE - Control
1шт.
7
H253864
VALVE SPRING
SPRING
2шт.
8
H608877
BLOCK
- Half
1шт.
9
H577783
CAM
1шт.
10
A14051
GRIP
KNOB
1шт.
11
113-46
BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5
- NC HH (1/4 x 2-3/4)
1шт.
12
131-1180
LOCK NUT,1/4"-20, GA
NUT, LOCK, 1/4"-20, GA
1шт.
13
H217109
BOLT
BOLT - Eye
2шт.
15
H289652
BALL JOINT,5/16" - 24 x 1-3/8" L
JOINT - Ball
1шт.
16
H587352
CONTROL
- Cable
1шт.
17
H169318
CLEVIS COUPLING,6.35mm OD x 22.62mm L
PIN - Clevis (1/4 x 51/64)
2шт.
18
132-329
COTTER PIN,1/16" x 3/4"
1/16" x 3/4"
2шт.
19
H416123
CABLE PULLING GRIP
CABLE - Propulsion
1шт.
20
H255158
CONTROL BLOCK
SHAFT
1шт.
21
138-96
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
22
H237701
BLOCK
- Control
1шт.
23
132-334
COTTER PIN,1/8" x 3/4"
PIN, SPLIT (COTTER), 1/8" x 3/4"
1шт.
24
195-533
WASHER,1/2", SAE
- Flat (1/2)
2шт.
25
131-1182
LOCK NUT,1/2"-13, GA
NUT - NC Hex (1/2 Lock)
1шт.
26
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
27
H588798
LINK
1шт.
29
H382440
SPRING
ASSEMBLY - Centering
1шт.
29a
86637933
JAM NUT,5/16" - 24, Gr 5
2шт.
30
H44206
CLEVIS COUPLING,7.94mm OD x 27.78mm L
PIN - Clevis (5/16 x 1)
1шт.
31
213-3
ADJUSTABLE CLEVIS,5/16"-24
CLEVIS
1шт.
32
132-334
COTTER PIN,1/8" x 3/4"
PIN, SPLIT (COTTER), 1/8" x 3/4"
1шт.
33
H656082
LEVER
ARM - Pump
1шт.
34
113-110
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
Hex, 5/16"-18 x 2 1/4", G5
1шт.
35
138-142
LOCK PIN,1/4" x 2", Slotted
PIN - Roll (3/16 x 2)
1шт.
Выбрано товаров: 37
