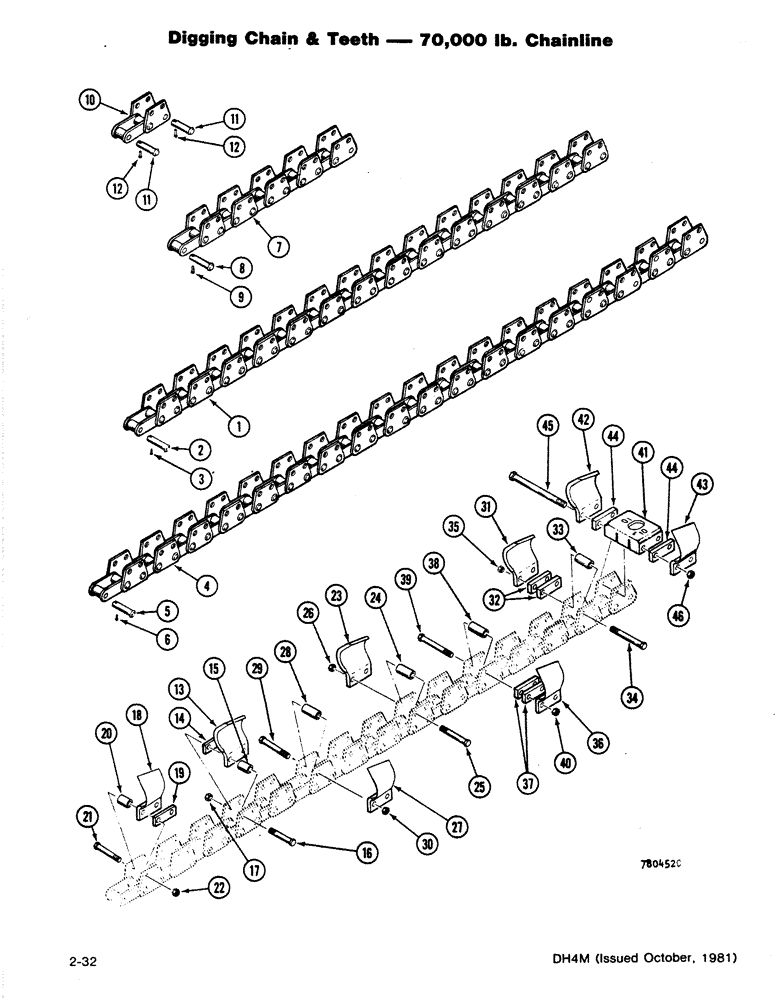

Запчасти Case DH4B (2-32) - DIGGING CHAIN & TEETH - 70,000 LB. CHAINLINE (89) - TOOLS

H639740

CHAIN (AG)

CAIN ASSEMBLY - 51 Pitches, Includes: Refs. 2, 3

1шт.

To order chain for 3' boom, order a total of 54 pitches of chain. To order chain for 4' boom, order a total of 61 pitches of chain. To order chain for 5' boom, order a total of 69 pitches of chain

1шт.

2

H283663

AXLE PIN

PIN - Connector, Includes: Ref. 3

1шт.

3

H297655

AXLE PIN

PIN - Keeper

1шт.

4

H601328

CHAIN (CE)

CHAIN ASSEMBLY - 57 Pitches, Includes: Refs. 5, 6

1шт.

To order chain for 3' boom, order a total of 54 pitches of chain. To order chain for 4' boom, order a total of 61 pitches of chain. To order chain for 5' boom, order a total of 69 pitches of chain

1шт.

5

H283663

AXLE PIN

PIN - Connector, Includes: Ref. 6

1шт.

6

H297655

AXLE PIN

PIN - Keeper

1шт.

7

H601336

CHAIN (CE)

CHAIN ASEMBLY - 10 Pitches, Includes: Refs. 8, 9

1шт.

To order chain for 3' boom, order a total of 54 pitches of chain. To order chain for 4' boom, order a total of 61 pitches of chain. To order chain for 5' boom, order a total of 69 pitches of chain

1шт.

8

H283663

AXLE PIN

PIN - Connector, Includes: Ref. 9

1шт.

9

H297655

AXLE PIN

PIN - Keeper

1шт.

10

H601344

LINK

CHAIN ASSEMBLY - (Repair Section) - 2 Pitches, Includes: Refs. 11, 12

1шт.

To order chain for 3' boom, order a total of 54 pitches of chain. To order chain for 4' boom, order a total of 61 pitches of chain. To order chain for 5' boom, order a total of 69 pitches of chain

1шт.

11

H283663

AXLE PIN

PIN - Connector, Includes: Ref. 12

2шт.

12

H297655

AXLE PIN

PIN - Keeper

1шт.

13

H251389

TOOTH

- R/H

1шт.

14

H138990

SPACER

- Flat

1шт.

15

H213496

SPACER

- Short, Includes: Refs. 16, 17

2шт.

16

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

17

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

18

H251371

TOOTH

- L/H

1шт.

19

H138990

SPACER

- Flat

1шт.

20

H213496

SPACER

- Short, Includes: Refs. 21, 22

2шт.

21

113-628

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

Hex, 5/8"-11 x 3 1/2", G5

2шт.

22

131-1130

LOCK NUT,5/8"-11, GA

NUT - Hex C/L (5/8)

2шт.

23

H251389

TOOTH

- R/H

1шт.

24

H138982

SPACER

- Long, Includes: Refs. 25, 26

1шт.

25

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- NC HH (5/8 x 4)

2шт.

26

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

27

H251371

TOOTH

- L/H

1шт.

28

H138982

SPACER

- Long, Includes: Refs. 29, 30

2шт.

29

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- NC HH (5/8 x 4)

2шт.

30

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

31

H251389

TOOTH

- R/H

1шт.

32

H251504

SPACER

- Flat

2шт.

33

H138982

SPACER

- Long, Includes: Refs. 34, 35

2шт.

34

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- NC HH (5/8 x 5)

2шт.

35

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

36

H251371

TOOTH

- L/H

1шт.

37

H251504

SPACER

- Flat

2шт.

38

H138982

SPACER

- Long, Includes: Refs. 39, 40

2шт.

39

113-647

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- NC HH (5/8 x 5)

2шт.

40

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L (5/8)

2шт.

NSS

NOT SOLD SEPARAT

DIGGING TOOTH ASSEMBLY - 10", Includes: Refs. 41-43

1шт.

41

H135335

BRACKET

- Tooth Mounting - 10"

1шт.

42

H251389

TOOTH

- R/H

1шт.

43

H251371

TOOTH

- L/H

1шт.

44

H251504

SPACER

- Flat, Includes: Refs. 45, 46

2шт.

45

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- NC HH (5/8 x 8)

2шт.

46

131-1130

LOCK NUT,5/8"-11, GA

NUT - NC Hex C/L

2шт.
