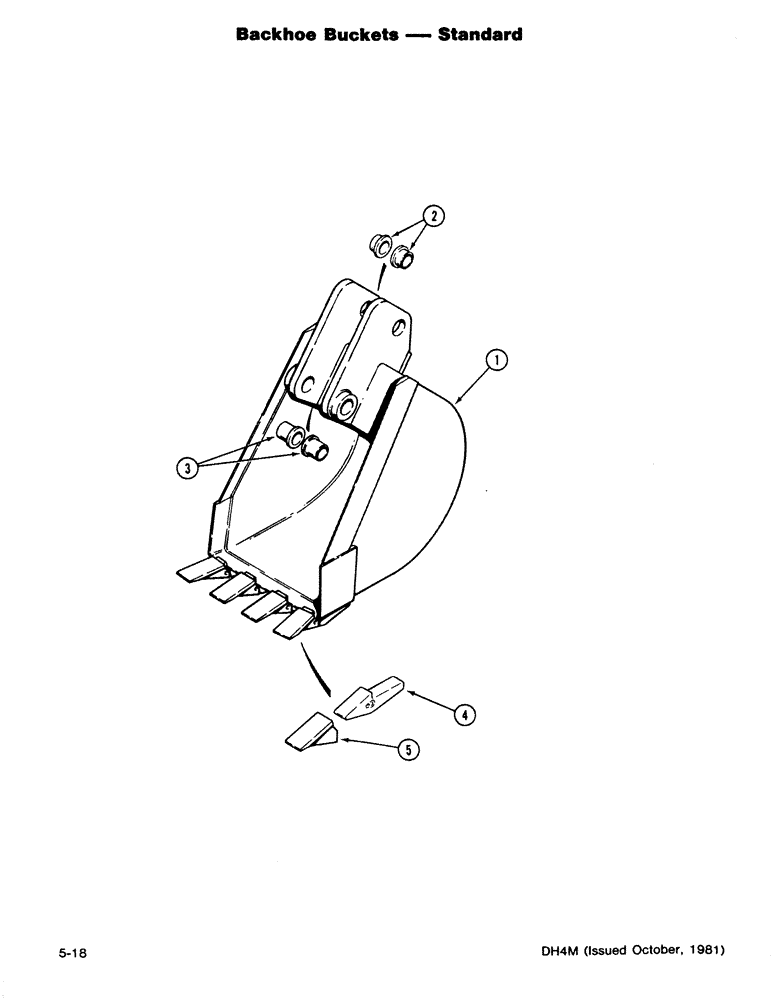

Запчасти Case DH4B (5-18) - BACKHOE BUCKETS - STANDARD (84) - BOOMS, DIPPERS & BUCKETS
№
Артикул
Название
Примечание
Количество
1
BUCKET ASSEMBLY - 12", Includes: Refs. 2-5
1шт.
2
H50823
BUSHING
- Cylinder Pin
2шт.
3
H51684
BUSHING - Bucket Hinge
2шт.
4
H36657
TOOTH
SHANK - Tooth
4шт.
5
T41166
TOOTH
POINT - Tooth
4шт.
1
BUCKET ASSEMBLY - 16", Includes: Refs. 2-5
1шт.
Machinery Item - See Equipment Price List.
1шт.
2
H50823
BUSHING
- Cylinder Pin
2шт.
3
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
- Bucket Hinge
2шт.
4
H36657
TOOTH
SHANK - Tooth
4шт.
5
T41166
TOOTH
POINT - Tooth
4шт.
1
BUCKET ASSEMBLY - 20", Includes: Refs. 2-5
1шт.
Machinery Item - See Equipment Price List.
1шт.
2
H50823
BUSHING
- Cylinder Pin
2шт.
3
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
- Bucket Hinge
2шт.
4
H36657
TOOTH
SHANK - Tooth
4шт.
5
T41166
TOOTH
POINT - Tooth
4шт.
1
BUCKET ASSEMBLY - 24", Includes: Refs. 2-5
1шт.
Machinery Item - See Equipment Price List.
1шт.
2
H50823
BUSHING
- Cylinder Pin
2шт.
3
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
- Bucket Hinge
2шт.
4
H36657
TOOTH
SHANK - Tooth
5шт.
5
T41166
TOOTH
POINT - Tooth
5шт.
1
BUCKET ASSEMBLY - 36", Includes: Refs. 2-5
1шт.
Machinery Item - See Equipment Price List.
1шт.
2
H50823
BUSHING
- Cylinder Pin
2шт.
3
H56184
BUSHING,29.08mm ID x 44.5mm OD x 28.6mm L
- Bucket Hinge
2шт.
4
H36657
TOOTH
SHANK - Tooth
7шт.
5
T41166
TOOTH
POINT - Tooth
7шт.
Выбрано товаров: 29
