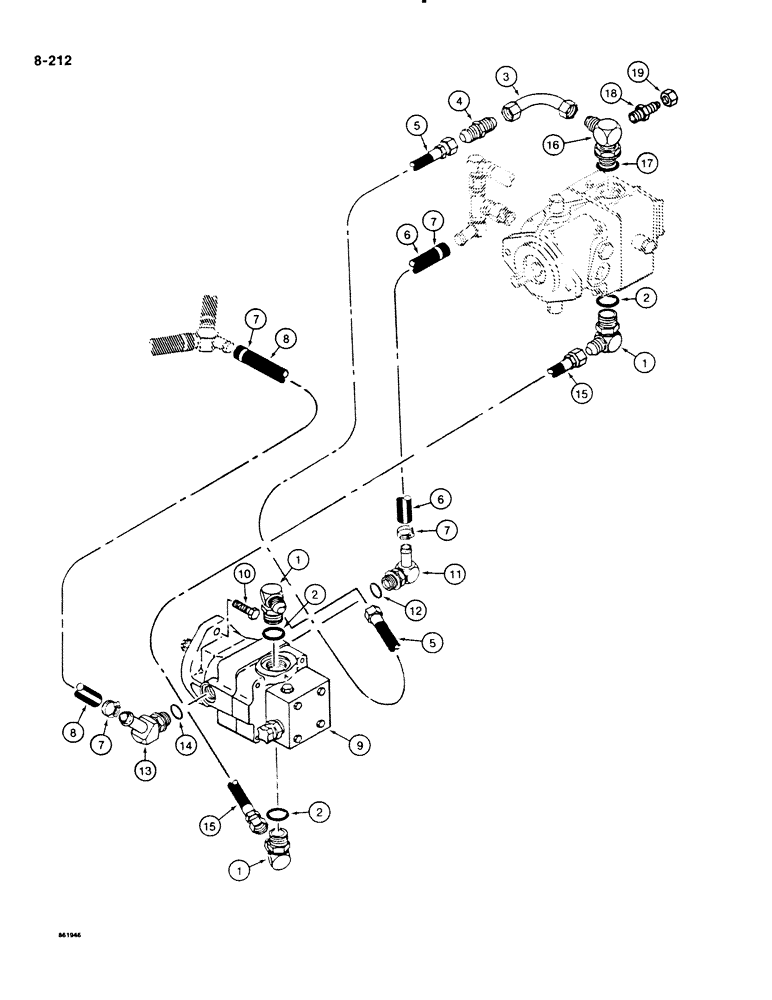

Запчасти Case DH4B (8-212) - FRONT MOUNTED TRENCHER DRIVE HYDRAULIC CIRCUIT, MODELS WITHOUT PLOWS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
- 90 degree, adjustable, Includes: Ref. 2
3шт.
2
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- elbow
1шт.
3
H421362
TUBE ASSY.,19 mm OD x 105, 38 mm L
TUBE - attachment drive pump, elbow to connector
1шт.
4
218-737
UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree
CONNECTOR - straight
1шт.
5
S400832
HOSE
- 49" (1245 mm) long, attachment drive to trencher drive motor
1шт.
6
H307769
HOSE ASSY.
HOSE - 3/4" (19 mm) ID x 42" (1067 mm) long, return, cut from 180720C2 bulk hose, see below
1шт.
7
214-254
HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm
CLAMP - hose
4шт.
8
H309039
LARGE HOSE
HOSE - 3/4" (19 mm) ID x 38" (965 mm) long, trencher drive motor to three-way fitting, cut from 180720C2 bulk hose, see below
1шт.
9
H624759
MOTOR, ELECTRIC
MOTOR ASSEMBLY - trencher drive, parts list Figure 6-154
1шт.
10
113-412
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
11
217-351
FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB
STEM FITTING - 90 degree, adjustable, Incl. Ref. 12
1шт.
12
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- stem fitting
1шт.
13
217-315
FITTING,45 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB
STEM FITTING - 45 degree, Includes: Ref. 14
1шт.
14
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- stem fitting
1шт.
15
S400832
HOSE
- 49" (1245 mm) long, attachment drive pump to trencher drive motor
1шт.
16
H219568
ADAPTER
ELBOW - special, side outlet, Includes: Ref. 17
1шт.
17
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- elbow
1шт.
18
218-444
HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF
ADAPTER - straight
1шт.
180720C2
HOSE ASSY.
HOSE - bulk length, 3/4" (19 mm) ID x 25 ft (762 cm) long, use to make refs. 6 and 8
1шт.
