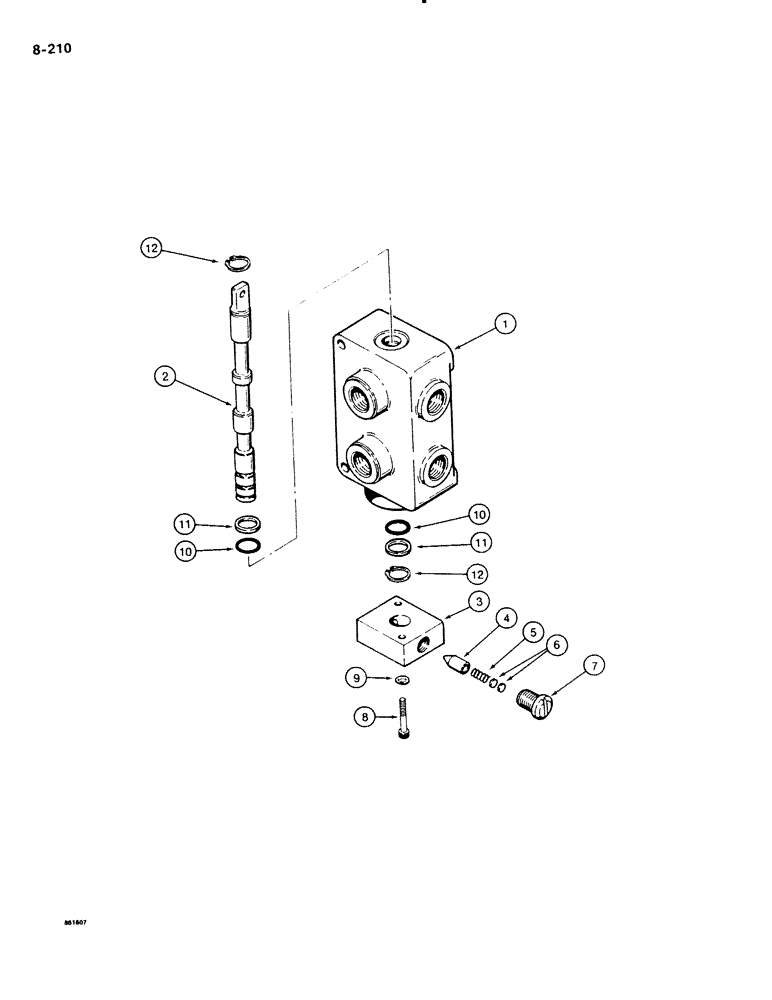

Запчасти Case DH4B (8-210) - SELECTOR VALVE (08) - HYDRAULICS

H646943

LOCK VALVE

SELECTOR VALVE ASSEMBLY - attachment, Cessna No. 39126-AAH, Includes: Ref. 1-12

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - selector valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - selector valve

1шт.

3

H389023

BLOCK

- detent

1шт.

4

H104992

PAWL

DETENT - spool

2шт.

5

H396978

SPRING

- detent

2шт.

6

H141788

DISC

SHIM - detent

1шт.

7

H424200

PLUG

- detent

2шт.

8

A45146

BOLT - hex socket head, special

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

H629790

KIT

- seal repair, Includes: Ref. 10-12

1шт.

10

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

- spool

2шт.

11

NSS

NOT SOLD SEPARAT

BACKUP RING - spool O-ring

2шт.

12

NSS

NOT SOLD SEPARAT

SNAP RING - spool

2шт.
