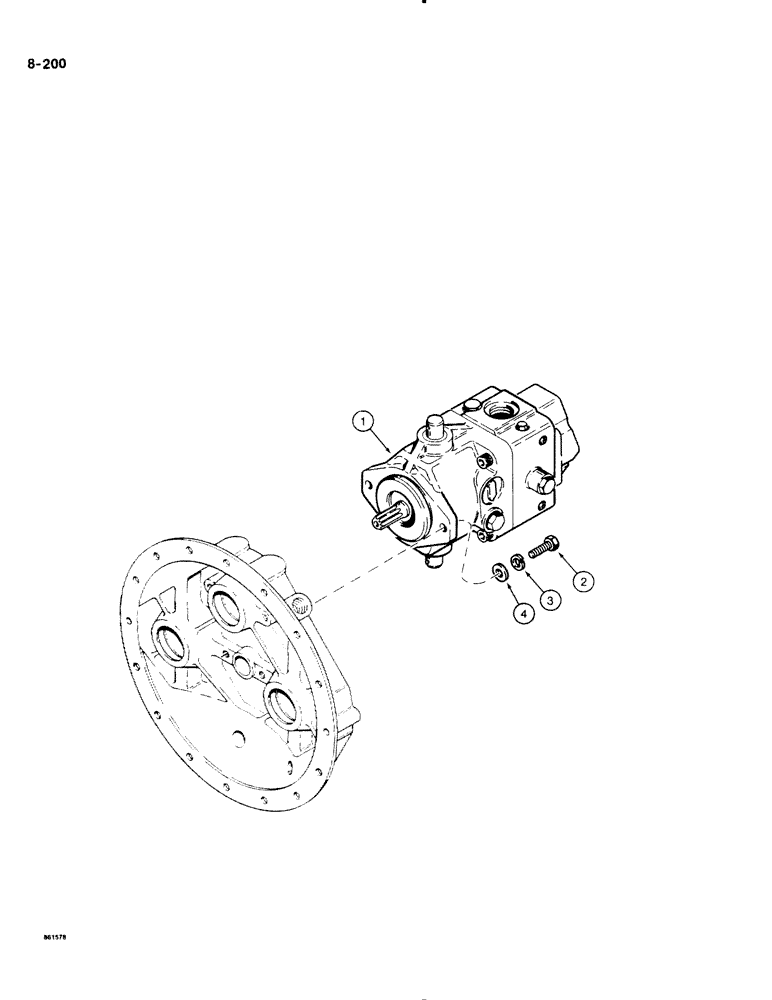

Запчасти Case DH4B (8-200) - ATTACHMENT DRIVE PUMP MOUNTING (08) - HYDRAULICS

1

H665802

PUMP

ASSEMBLY - attachment drive, if used, parts list Figure 8-202

1шт.

See Figure 6-134 for pump drive assembly.

1шт.

1

H672705

PUMP

ASSEMBLY - attachment drive, if used, parts list figure 8-205

1шт.

See Figure 6-134 for pump drive assembly.

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

195-533

WASHER,1/2", SAE

- flat, 1/2", plated if used

2шт.

M20704

ADHESIVE

GASKET - form-in-place, 2.8 fluid ounces per tube, use between pump and pump drive housing

1шт.

See Figure 6-134 for pump drive assembly.

1шт.

B17423

LOCTITE

- 271 red, 50cc bottle. Use when installing pump mounting bolts

1шт.
