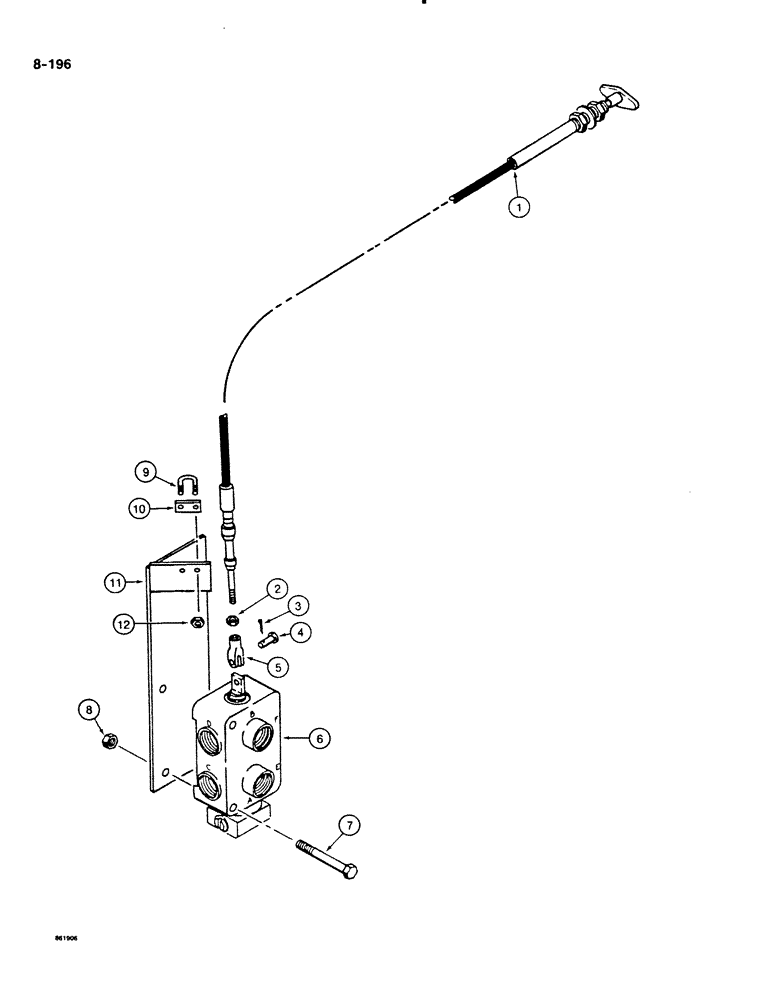

Запчасти Case DH4B (8-196) - SELECTOR VALVE CONTROL AND MOUNTING (08) - HYDRAULICS

1

H647677

CABLE PULLING GRIP

CABLE - selector valve control

1шт.

2

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

3

132-334

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

4

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

CLEVIS PIN - special

1шт.

5

A18709

CLEVIS

- cable end

1шт.

6

H646943

LOCK VALVE

SELECTOR VALVE ASSEMBLY - attachment, trencher or plow, parts list Figure 8-210

1шт.

7

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.

9

H166421

HARDWARE

U-BOLT - special

1шт.

10

H373779

LARGE PLATE

SPACER - cable mounting

1шт.

11

H647727

PLATE ASSY.

BRACKET - selector valve mounting

1шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.
