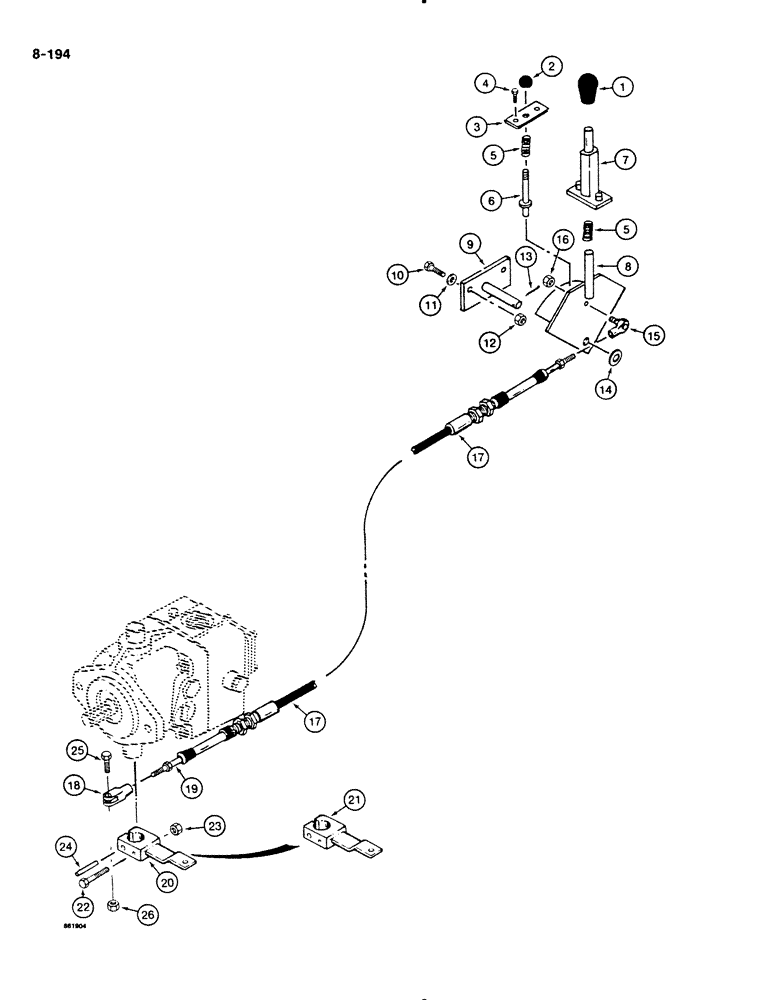

Запчасти Case DH4B (8-194) - ATTACHMENT SPEED CONTROLS (08) - HYDRAULICS

1

H182113

KNOB

- attachment speed selector

1шт.

2

H249839

KNOB

- front or rear attachment selector

1шт.

3

H378901

PLATE

- spring retaining

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

5

A33044

SPRING

- return, attachment speed control, with detents

1шт.

6

H642892

ROD

- selector control

1шт.

7

H641043

HANDLE

- attachment speed control, with detents

1шт.

8

H641035

HANDLE

LEVER - attachment speed control

1шт.

9

H641027

MOUNTING PARTS

BRACKET - lever mounting

1шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

11

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

2шт.

12

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

13

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

1шт.

14

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

15

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - control cable

1шт.

16

131-1246

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

1шт.

17

H416123

CABLE PULLING GRIP

CABLE - attachment speed control

1шт.

18

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - adjustable, 5/16" - 24 NF

1шт.

19

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

20

H656074

LEVER

ARM - attachment drive pump, used with H672705 attachment drive pump, see figure 8-203, if used

1шт.

21

H672700

LEVER

ARM - attachment drive pump, used with H672705 attachment drive pump, see figure 8-207, if used

1шт.

22

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

1шт.

23

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.

24

138-142

LOCK PIN,1/4" x 2", Slotted

PIN, 1/4" x 2", Slotted

1шт.

25

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

1шт.
