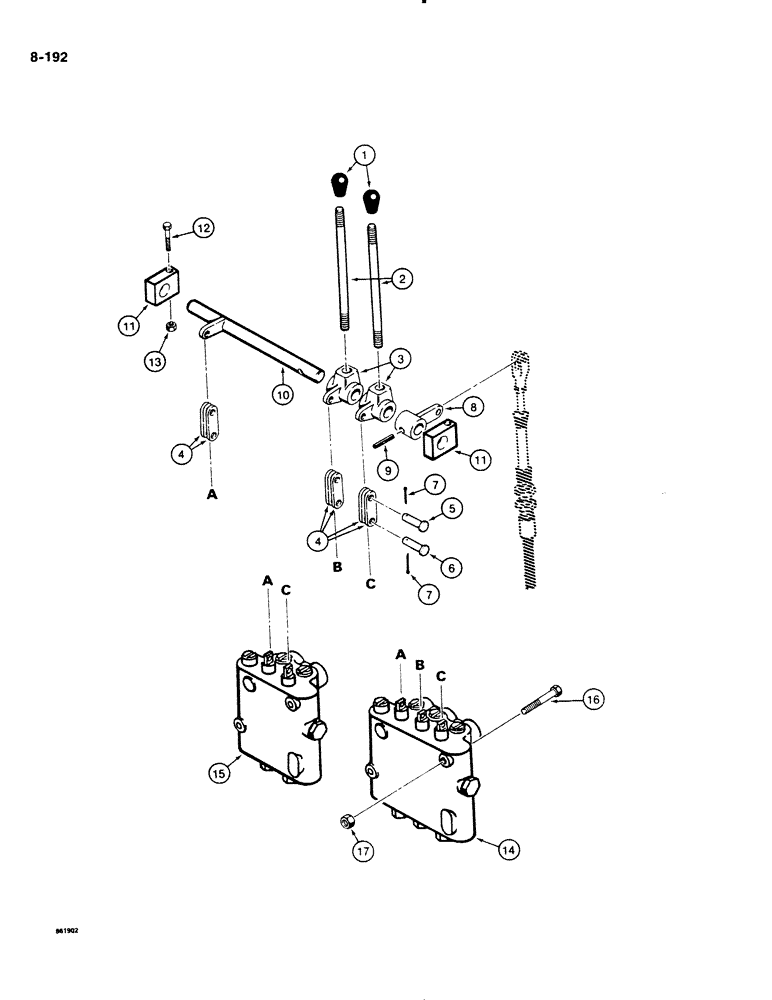

Запчасти Case DH4B (8-192) - ATTACHMENT LIFT CONTROLS AND VALVE MOUNTING (08) - HYDRAULICS

1

A14051

GRIP

KNOB - attachment lift control handle

1-2шт.

2

H191916

ROD

HANDLE - attachment lift control lever

1-2шт.

3

H275255

CRANK LEVER

LEVER - control handle

1-2шт.

4

H196865

LINK

- control, Serial Range: lever-valve

4-6шт.

5

141-52

CLEVIS PIN,1/4" x .770"

- 1/4", plated, special length

2-3шт.

6

H35279

AXLE PIN,4.72mm OD x 23.76mm L

CLEVIS PIN - special, 3/16" x 57/64" long

2-3шт.

7

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4-6шт.

8

H558361

LEVER

- steering control

1шт.

9

138-135

LOCK PIN,1/4" x 1 1/8", Slotted

PIN, LOCK, 1/4" x 1 1/8", Slotted

1шт.

10

H640987

SHAFT

- attachment lift control

1шт.

11

H426411

BEARING

BLOCK - bearing, shaft

2шт.

12

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

13

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

14

H641050

LOCK VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, three-spool, parts list figure 6-125

1шт.

15

H656454

VALVE

CONTROL VALVE ASSEMBLY - steering and attachment lift, two-spool, parts list figure 6-125

1шт.

16

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

17

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.
