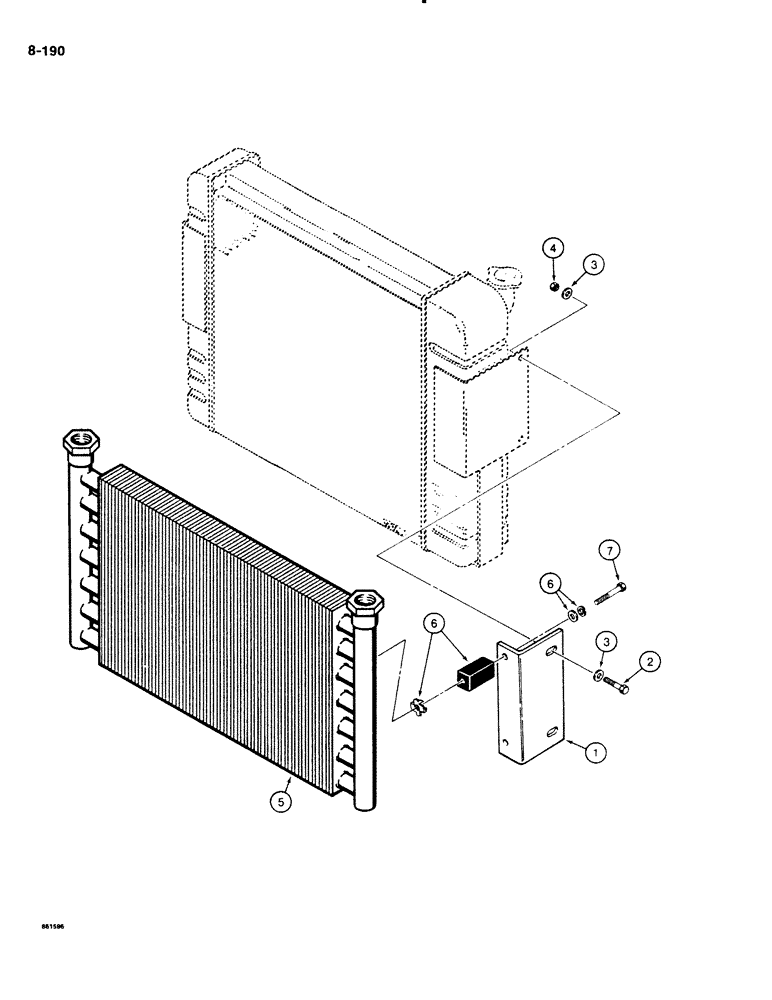

Запчасти Case DH4B (8-190) - HYDRAULIC OIL COOLER MOUNTING (08) - HYDRAULICS

1

H374942

BRACKET

- oil cooler mounting

2шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

8шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

4шт.

5

H640110

COOLER

- hydraulic oil

1шт.

6

H642926

MOUNTING PARTS

KIT - cooler mounting, includes two complete mounts

2шт.

7

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Use to replace slotted screw included in ref. 6 Hex, 5/16"-18 x 2", G5

4шт.
