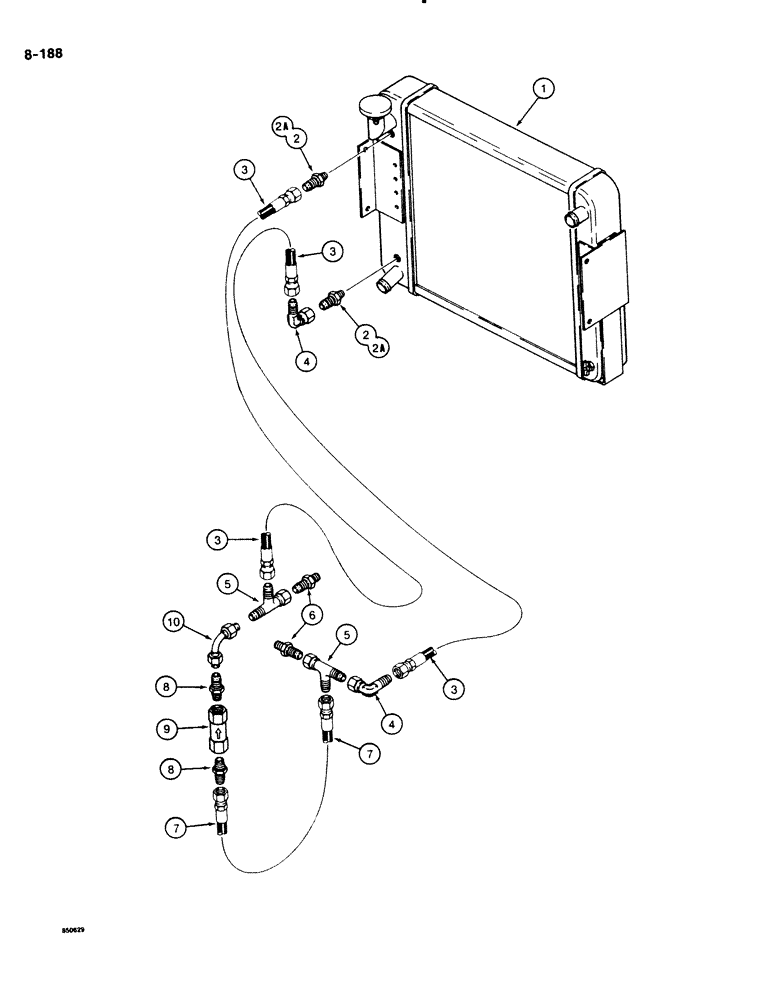

Запчасти Case DH4B (8-188) - ENGINE OIL COOLER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine cooling, includes integral engine oil cooler, see figure 2-15

1шт.

2

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, at cooler, used with H434269 radiator, see figure 2-15 for radiator identification

2шт.

2a

218-1025

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-14, NPTF

ADAPTER - straight, at cooler, used with H434501 radiator, see figure 2-15 for radiator identification

2шт.

3

H424978

HYDRAULIC HOSE,9.52 mm ID x 1525.00 mm, SAE 100R6

- Cooler inlet and outlet 9.52 mm ID x 1525.00 mm, SAE 100R6

2шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, lower hose

2шт.

5

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- swivel, at engine and filter connections

2шт.

6

H423517

CONNECTOR, ELEC

ADAPTER - straight, special, connects to engine and filter

2шт.

7

H378588

HOSE

- 20-1/2" (521 mm) long, to check valve

1шт.

8

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, at check valve

1шт.

9

H626994

VALVE, PRESSURE RELI

CHECK VALVE - cooler circuit

1шт.

10

H666602

TUBE ASSY.,12.7 mm OD x 57.15 mm L

TUBE - check valve to filter tee

1шт.
