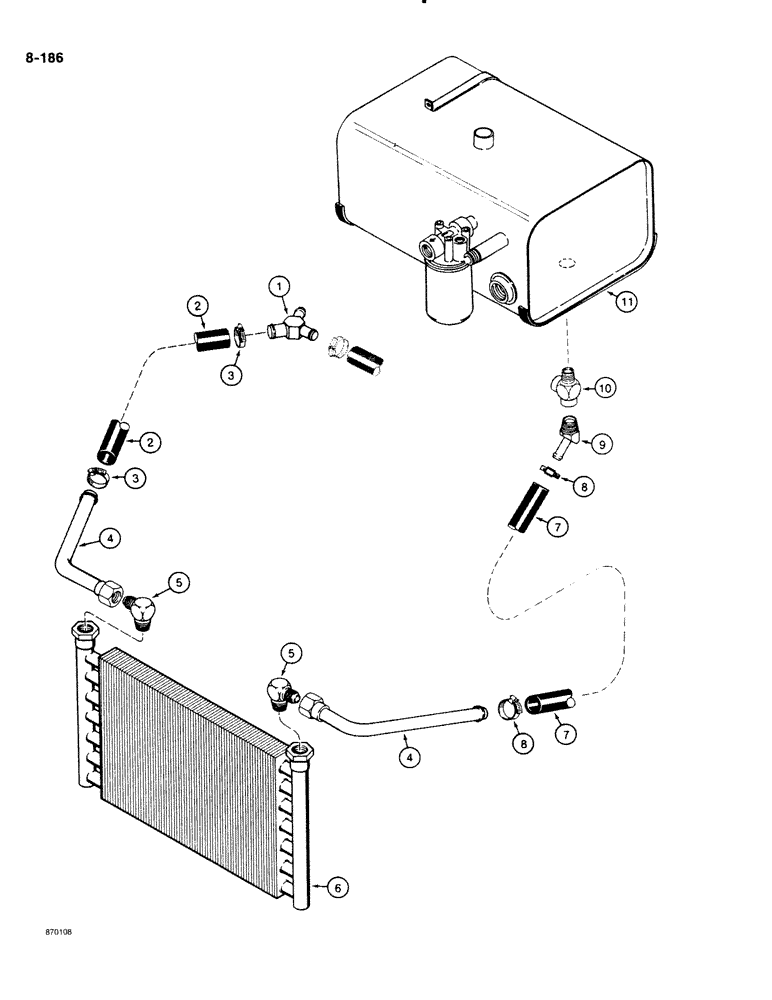

Запчасти Case DH4B (8-186) - HYDRAULIC OIL COOLER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

H339747

FITTING

STEM FITTING - three-way

1шт.

2

L45541

HOSE

- 1" (25 mm) ID x 36" (914 mm) long, to oil cooler, cut from H307926 bulk hose, see below

1шт.

3

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

4

H642165

TUBE ASSY.,25.4 mm OD x 200, 90 mm L

TUBE - oil cooler circuit

2шт.

5

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree

2шт.

6

H640110

COOLER

- hydraulic oil, see Figure 8-190 for mounting

1шт.

7

H433080

HOSE

- 1" ( 25 mm) ID x 48-3/8" (1100 mm) long, from oil cooler, cut from H307926 bulk hose, see below

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

9

217-146

ELBOW,45 Degree Elbow, 1" Hose Barb x 1" Male NPTF

STEM FITTING - 45 degree

1шт.

10

217-1060

TEE,1" - 11-1/2 Female x 1" - 11-1/2 Male Run

- special

1шт.

11

H662866

RESERVOIR

- hydraulic oil, see Figure 8-184 for mounting

1шт.

H307926

HOSE ASSY.

HOSE - bulk length, 1" (19 mm) ID x 62" (1575 mm) long, use to make refs. 2 and 7

1шт.
