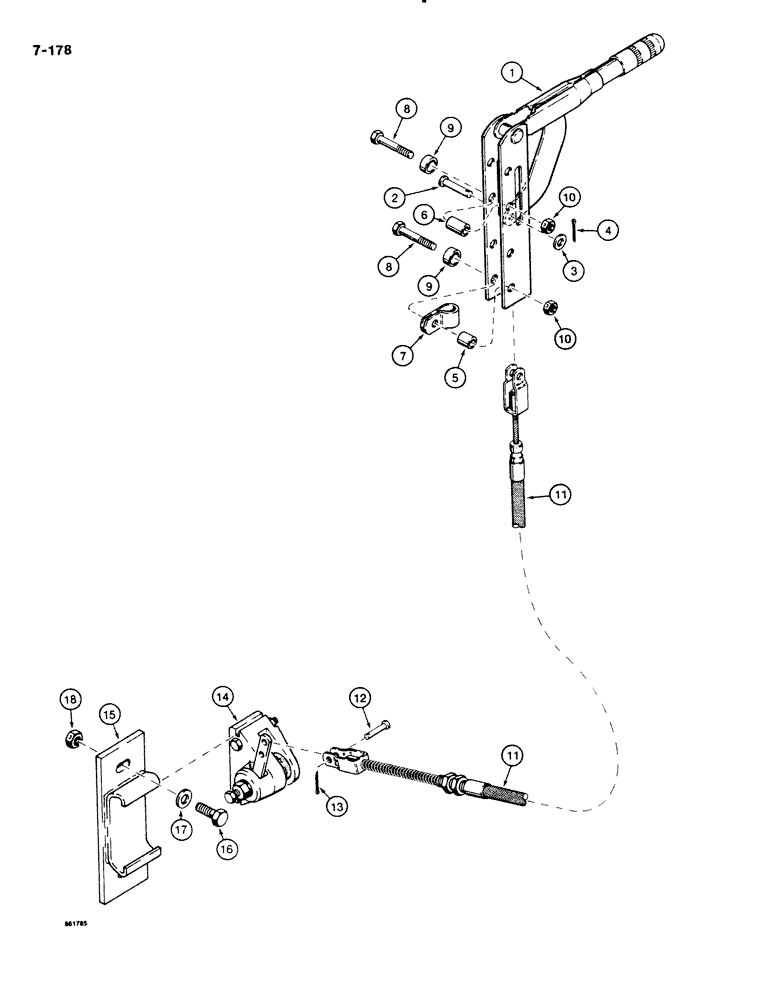

Запчасти Case DH4B (7-178) - PARKING BRAKE, HAND BRAKE (07) - BRAKES

H506881

HANDLE

LEVER ASSEMBLY - parking brake, hand actuated, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

2

D42458

PIN

CLEVIS PIN - special

1шт.

3

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

H53959

SPACER

- brake lever, 1/2" (13 mm) long

1шт.

6

H53942

SPACER

- brake lever, 3/4" (20 mm) long

1шт.

7

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

- cable

1шт.

8

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

9

H270538

SPACER

- parking brake lever

2шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

11

H665927

CONTROL BLOCK

CABLE - parking brake

1шт.

12

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long

1шт.

13

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

H638841

SET

CALIPER ASSEMBLY - parking brake, parts list Figure 7-180

1шт.

15

H641506

CALIPER

BRACKET - caliper mounting

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

18

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
