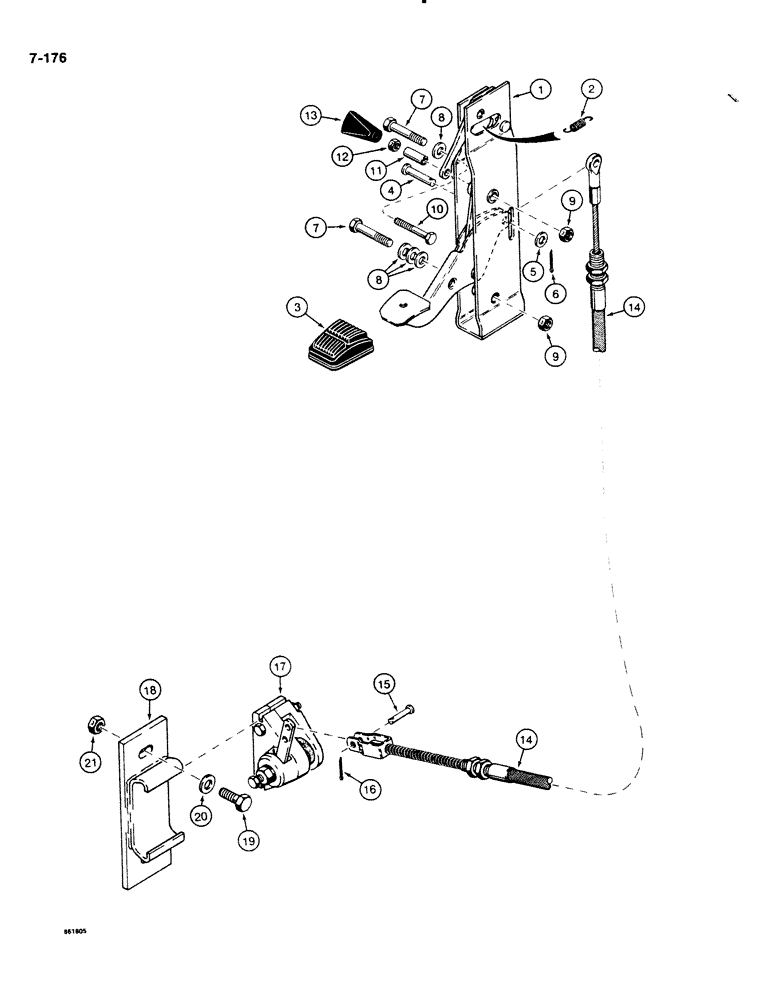

Запчасти Case DH4B (7-176) - PARKING BRAKE, FOOT BRAKE (07) - BRAKES

H656215

LEVER ASSY.

BRAKE LEVER ASSEMBLY - parking, foot pedal actuated, Includes: Ref. 1-6

1шт.

1

NSS

NOT SOLD SEPARAT

BRAKE LEVER - parking, foot pedal actuated, order H656215 brake lever assembly

1шт.

2

N8202

SPRING

- brake lever return

1шт.

3

N8204

PAD

- foot, rubber

1шт.

4

D42458

PIN

CLEVIS PIN - special

1шт.

5

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.

6

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

8

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

4шт.

9

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

10

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex head, 1/4" - 20 NC x 1-3/4" plated

1шт.

11

H404723

SPACER

- parking brake release knob

1шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

13

F64341

KNOB

- parking brake release

1шт.

14

H656207

CABLE

- parking brake

1шт.

15

D23693

AXLE PIN

CLEVIS PIN - special, 1/4" x 1" long

1шт.

16

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

17

H638841

SET

CALIPER ASSEMBLY - disc brake, parts list Figure 7-180

1шт.

18

H641506

CALIPER

BRACKET - parking brake caliper mounting

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

20

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

21

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8" - 16 NC, plated

2шт.
