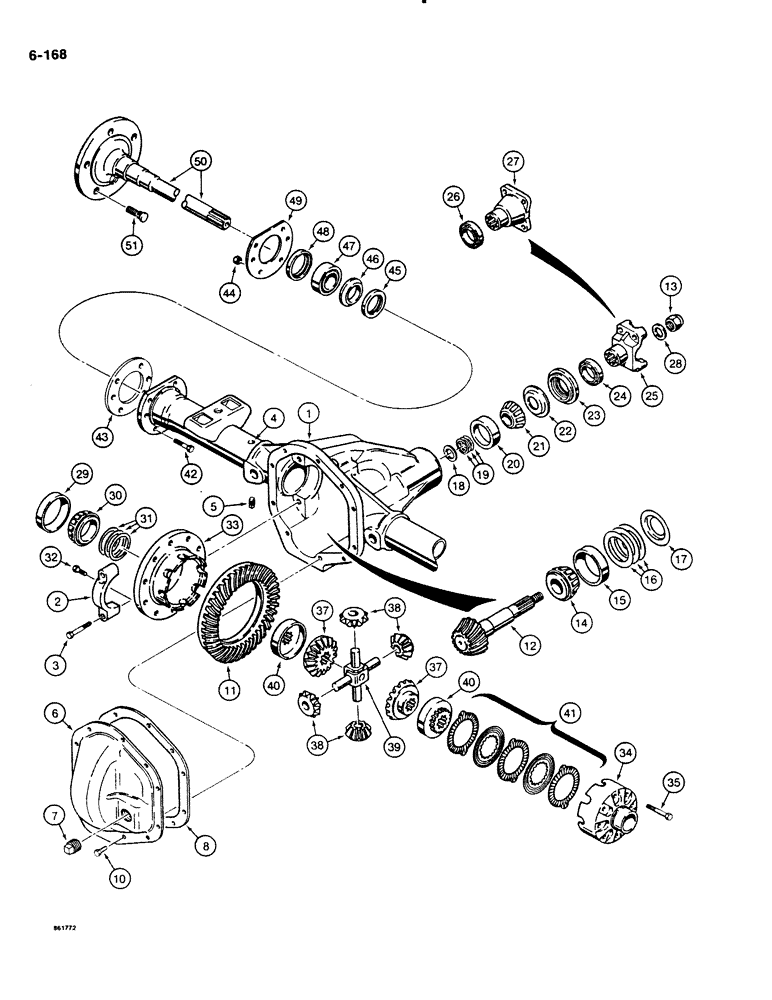

Запчасти Case DH4B (6-168) - FRONT AND REAR AXLES (06) - POWER TRAIN

H650689

AXLE

ASSEMBLY - front, with axle mounting pads

1шт.

H650705

AXLE, REAR

AXLE ASSEMBLY - rear, with axle mounting pads

1шт.

H650671

AXLE ASSEMBLY - front, without axle mounting pads, Dana No. 070AA100-2, not available for service, order H650689 axle assembly with mounting pads

1шт.

H650697

AXLE ASSEMBLY - rear, without axle mounting pads, Dana No. 070AA100-1, not available for service, order H650705 axle assembly with mounting pads, Includes: H663153 HOUSING ASSEMBLY and Refs. 1-51

1шт.

H663153

HOUSING ASSEMBLY - front or rear axle, Includes: Ref. 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

3

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

4шт.

4

H393199

VENT

BREATHER - axle housing

1шт.

5

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - square head, 1/4" NPT

1шт.

H224717

COVER ASSY

COVER ASSEMBLY - differential carrier, ribbed sealing surface, if used

1шт.

N14071

COVER ASSY

COVER ASSEMBLY - differential carrier, flat sealing surface, Includes: Ref. 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

COVER - differential carrier, ribbed sealing surface, order H224717 cover assembly, if used

1шт.

7

221-48

PLUG

- square head, 3/4" NPT

1шт.

8

H224725

GASKET

- differential carrier cover, used on covers with flat sealing surface, if used

1шт.

9

M20704

ADHESIVE

GASKET - form in place, 3 oz. (3206 ml) sealant in a tube, differential carrier cover, used on covers with a ribbed sealing surface, if used

1шт.

10

H227132

FLANGE BOLT

BOLT - hex head, special, differential carrier cover

10шт.

H644799

SET

PINION AND RING GEAR SET - axle, Includes: Ref. 11-13

1шт.

11

NSS

NOT SOLD SEPARAT

RING GEAR - differential case

1шт.

12

NSS

NOT SOLD SEPARAT

PINION SHAFT - input

1шт.

13

131-1252

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

14

F60824

ROLLER BEARING

CONE - pinion shaft bearing, inner

1шт.

15

F60823

CUP ASSY.

CUP - pinion shaft bearing, inner

1шт.

16

H224600

SHIM,.003" Thk

Pinion shaft (0.08 mm), Inner .003" Thk

1шт.

16

H224618

SHIM,.005" Thk

Pinion shaft (0.13 mm), Inner .005" Thk

1шт.

16

H224626

SHIM,.010" Thk

Pinion shaft (0.25 mm), Inner .010" Thk

1шт.

17

H224592

BAFFLE

- pinion bearing oil

1шт.

18

N9847

SPACER

- pinion shaft, pre-load, if used

1шт.

19

H136192

SHIM,.003" Thk

Pinion (0.08 mm), Outer .003" Thk

1шт.

19

H136200

SHIM,.005" Thk

Pinion shaft (0.13 mm), Outer .005" Thk

1шт.

19

H136218

SHIM,.010" Thk

Pinion shaft (0.25 mm), Outer .010" Thk

1шт.

19

H136226

SHIM,.030" Thk

Pinion shaft (0.76 mm), Outer .030" Thk

1шт.

20

H747816

CUP

- pinion shaft bearing, outer

1шт.

21

H747824

ROLLER BEARING,1.25" ID x 1.1563"

CONE - pinion shaft bearing, outer

1шт.

22

H224535

SHIELD

SLINGER - outer pinion shaft bearing

1шт.

23

H758326

OIL SEAL

SEAL - oil, pinion shaft

1шт.

H650689

AXLE

ASSEMBLY - front, with axle mounting pads, continued from Figure 6-168

1шт.

H650705

AXLE, REAR

AXLE ASSEMBLY - rear, with axle mounting pads, continued from Figure 6-168

1шт.

H650671

AXLE ASSEMBLY - front, without axle mounting pads, Dana No. 070A100-2, not available for service, order H650689 axle assembly with mounting pads

1шт.

H650697

AXLE ASSEMBLY - rear, without axle mounting pads, Dana No. 070AA100-1, not available for service, order H650705 axle assembly with mounting pads, Includes: H224519 YOKE ASSEMBLY and Refs. 24-51

1шт.

H224519

YOKE

ASSEMBLY - front axle, Includes: Ref. 24, 25

1шт.

24

H224527

SHIELD

- dirt, axle yoke

1шт.

25

NSS

NOT SOLD SEPARAT

YOKE - front axle, order H224519 yoke assembly

1шт.

H263111

FLANGE

YOKE ASSEMBLY - rear axle, Includes: Ref. 26, 27

1шт.

26

H224527

SHIELD

- dirt, axle yoke

1шт.

27

NSS

NOT SOLD SEPARAT

YOKE - rear axle, order H263111 yoke assembly

1шт.

28

H224501

WASHER

- flat, 7/8", special

1шт.

29

H747832

CUP

- differential case bearing (Replaces H747832)

2шт.

30

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - bearing, 2-1/4 inch ID, differential case

2шт.

31

H136325

SHIM,.003" Thk

(0.08 mm), Differential case bearing .003" Thk

1шт.

31

H136333

SHIM,.005" Thk

(0.13 mm), Differential case bearing .005" Thk

1шт.

31

H136341

SHIM,.010" Thk

(0.25 mm), Differential case bearing .010" Thk

1шт.

31

H136358

SHIM,.030" Thk

(0.76 mm), Differential case bearing .030" Thk

1шт.

32

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - hex head, special, differential case

12шт.

H668152

HOUSING

CASE ASSEMBLY - differential, internal and external components

1шт.

N14070

CASE

ASSEMBLY - differential, external components, Includes: Ref. 33-36

1шт.

33

NSS

NOT SOLD SEPARAT

CASE - differential, plain half, order N14070 differential assembly

1шт.

34

NSS

NOT SOLD SEPARAT

CASE - differential, flange half, order N14070 differential assembly

1шт.

35

26-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 8

- hex head, 7/16" - 14 NC x 3-1/2", grade 8

8шт.

36

H275164

STUD

ADAPTER - bolt

8шт.

H604132

GEAR WHEEL

GEAR SET - differential, Includes: Ref. 37-41

1шт.

37

NSS

NOT SOLD SEPARAT

GEAR - differential, order H604132 gear set

2шт.

38

NSS

NOT SOLD SEPARAT

PINION GEAR - differential, order H604132 gear set

4шт.

39

H224709

AXLE PIN

SHAFT - differential

2шт.

40

H224683

RING

- differential gear

2шт.

41

H224675

DISC

SET - diffreential, includes 6 plates and 4 discs

1шт.

42

H263103

BOLT

BOLT - hex head, special, axle housing to oil seal retainer

12шт.

43

H263178

SPACER

- axle seals

2шт.

44

131-1133

NUT,3/8"-24, GC

NUT - hex, self-locking, 3/8"- 24 NF, plated

12шт.

45

H263087

SEAL

- oil, axle shaft, inner

2шт.

H650382

SHAFT ASSY.

SHAFT ASSEMBLY - axle, Includes: Ref. 46-51

2шт.

46

H263160

OIL SEAL

RETAINING RING - bearing

1шт.

47

H263152

WHEEL BEARING KIT

BEARING - wheel

1шт.

48

H263145

SEAL ASSY.

SEAL - oil, axle shaft, outer

1шт.

49

H263137

RETAINER

PLATE - seal retaining

1шт.

50

NSS

NOT SOLD SEPARAT

SHAFT - axle, order H650382 shaft assembly

1шт.

51

H171090

WHEEL BOLT

BOLT - special, wheel mounting

5шт.
