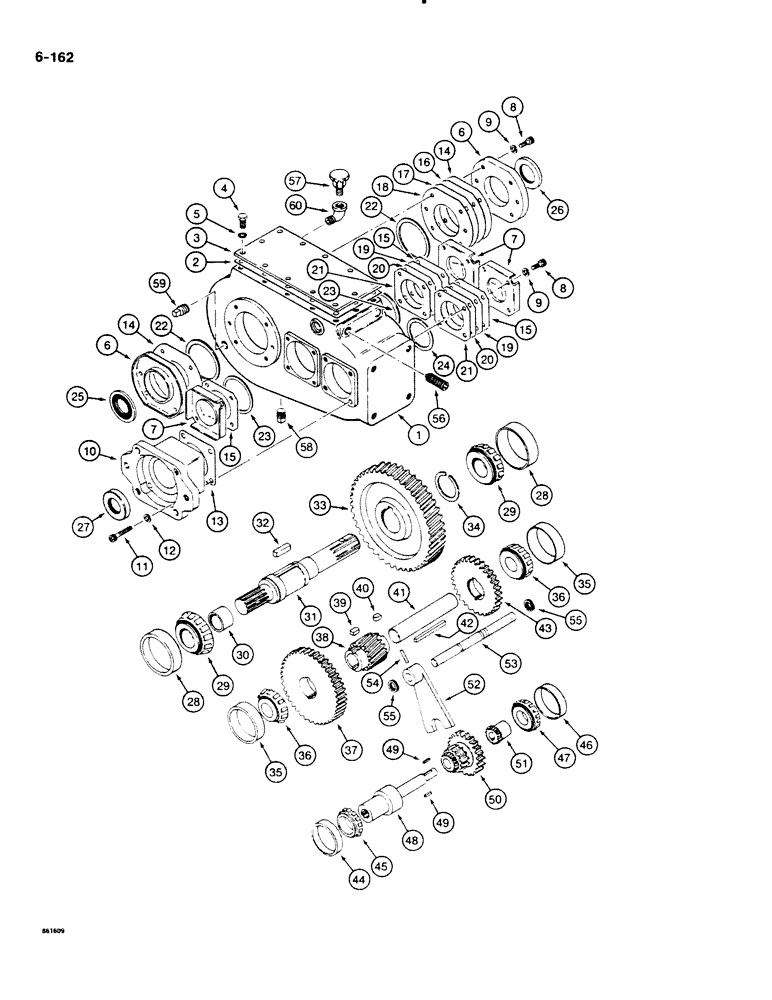

Запчасти Case DH4B (6-162) - TRANSMISSION (06) - POWER TRAIN

H655589

TRANSMISSION

ASSEMBLY - ground drive, Terrell NO. ML3-BU-001, Includes: Ref. 1-59

1шт.

1

H403014

HOUSING

- transmission

1шт.

2

H362715

GASKET

- cover

1шт.

3

H362590

COVER

- housing

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

12шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

6

H393900

COVER

- output gear access

2шт.

7

H403022

COVER

- input and intermediate gear access

3шт.

8

165-153

HEX SOC SCREW,5/16" - 18 x 1"

BOLT - hex socket head, 5/16" - 18 NC x 1", plated

24шт.

9

192-404

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

10

H403030

FLANGE

- input

1шт.

11

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex socket head, 3/8" - 16 NC x 1-1/2"

4шт.

12

192-401

LOCK WASHER,3/8"

3/8"

4шт.

13

H362657

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

14

H394817

SHIM,.005" Thk

(0.13 mm) .005" Thk

2шт.

15

H403139

SHIM,.005" Thk

(0.13 mm) .005" Thk

3шт.

16

H394817

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

17

H394833

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

18

H394841

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

19

H403139

SHIM,.005" Thk

(0.13 mm) .005" Thk

1шт.

20

H403147

SHIM,.007" Thk

(0.18 mm) .007" Thk

1шт.

21

H403154

SHIM,.020" Thk

(0.51 mm) .020" Thk

1шт.

22

H394866

BEARING

SPACER - output bearing

2шт.

23

H403428

SNAP RING,#262, 2.475, Ext

SPACER - intermediate gear bearing

2шт.

24

A150145

RING

SPACER - input bearing

1шт.

25

H403410

SEAL

- output shaft, flange side

1шт.

26

A30507

OIL SEAL

SEAL - output shaft

1шт.

27

H362731

SEAL

- input shaft

1шт.

28

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - tapered roller bearing

2шт.

29

H758128

BEARING

CONE - tapered roller bearing

2шт.

30

A142869

ROLLER CAGE BEARING

SLEEVE - bearing

1шт.

31

H403071

SHAFT

OUTPUT SHAFT - transmission

1шт.

32

H373209

KEY

- 3/8" square x 1-7/8", output shaft

1шт.

33

H403063

GEAR

- output shaft, 56 teeth

1шт.

34

H403444

RING

RETAINING RING - output shaft gear

1шт.

H655589

TRANSMISSION

ASSEMBLY - ground drive, Terrell No. ML3-BU-001, continued

1шт.

35

A26746

BEARING CUP

CUP - tapered roller bearing

2шт.

36

A31229

CONE

- tapered roller bearing

2шт.

37

H389494

GEAR

- intermediate, 55 teeth

1шт.

38

H403055

GEAR SHAFT

GEAR - intermediate shaft, 14 teeth

1шт.

39

H389650

KEY

- 1/4" x 3/8" x 3/4" long, intermediate shaft gear

1шт.

40

H389668

KEY

- 1/4" x 3/8" x 1/2" long, intermediate shaft gear

1шт.

41

H403097

SHAFT

- transmission, intermediate

1шт.

42

FH156620

KEY

- 1/4" square x 3" long, intermediate shaft

1шт.

43

H389585

GEAR

- intermediate, 42 teeth

1шт.

44

G57451

BEARING, CUP

CUP - tapered roller bearing

1шт.

45

G57452

ROLLER BEARING

CONE - tapered roller bearing

1шт.

46

04056TS

CUP

- tapered roller bearing

1шт.

47

40388

BEARING ASSY,26.987 mm ID x 20.64 mm

CONE - tapered roller bearing

1шт.

48

H403089

SHAFT ASSY.

SHAFT - transmission input

1шт.

49

F65828

KEY

- 1/8" square x 3/4" long, input shaft

2шт.

50

H403048

GEAR

- cluster, input shaft

1шт.

51

H403105

SLEEVE

GEAR - input

1шт.

52

H374835

FORK

YOKE - cluster gear

1шт.

53

H403113

ROD

- shifting

1шт.

54

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

1шт.

55

N9503

OIL SEAL

SEAL - shifting rod

2шт.

56

H403436

PLUNGER

- spring

1шт.

54

D57822

BREATHER

- transmission

1шт.

58

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - square head, 3/8" NPT

1шт.

59

221-844

PLUG,Hex Soc, 1/2"-14

- hex socket head, 1/2" NPT

1шт.

60

221-413

ELBOW,90 Degree, 3/8"-18, NPT

STREET BELOW - 90 degree, 3/8" NPT, not included with transmission assembly

1шт.
