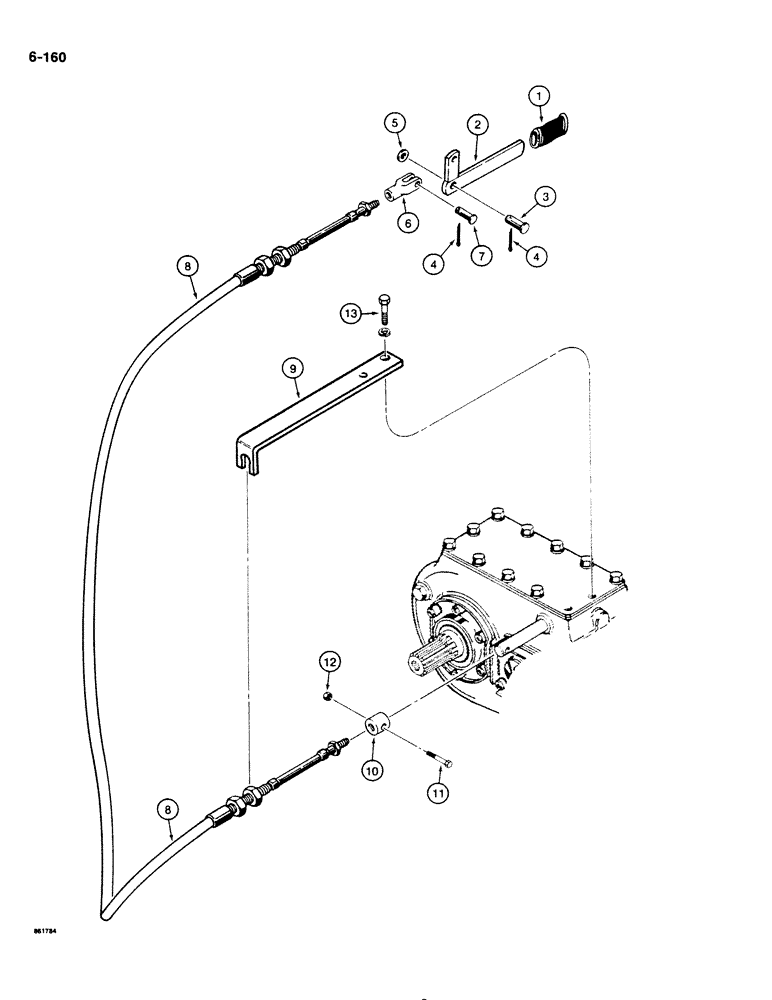

Запчасти Case DH4B (6-160) - TRANSMISSION SHIFT CONTROL (06) - POWER TRAIN

1

H31773

HANDLE

GRIP - lever, transmission shift control

1шт.

2

H640573

LEVER

- transmission shift control

1шт.

3

H92015

AXLE PIN

CLEVIS PIN - special, Serial Range: lever-cable

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

5

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

6

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - adjustable, 1/4" - 28 NF

1шт.

7

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

CLEVIS PIN - special, 1/4" x 51/64" long

1шт.

8

H559708

CABLE

- control, 66" (1674 mm) long

1шт.

9

H372771

BRACKET

- cable mounting, uses existing hardware, see figures 6-163 - 6-165 for transmission assembly

1шт.

10

H372789

ADAPTER

- transmission cable

1шт.

11

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

12

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

13

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Replaces 2 (two) 113-205 bolts that are included with transmission Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.
