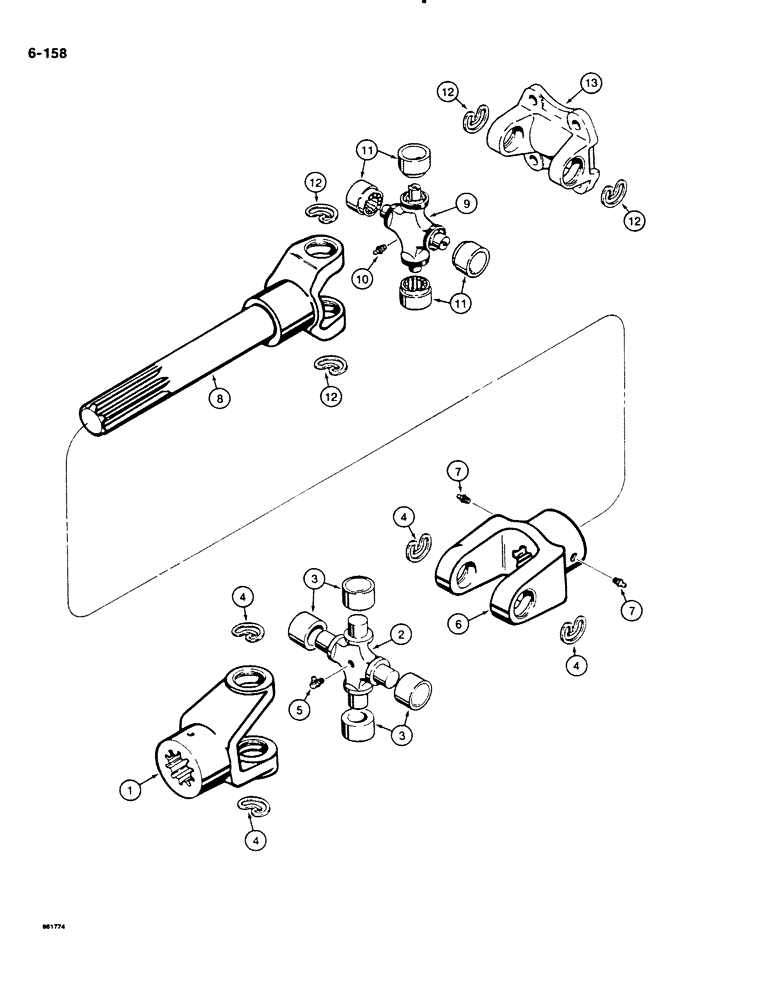

Запчасти Case DH4B (6-158) - DRIVE SHAFT (06) - POWER TRAIN

H637272

DRIVE SHAFT

ASSEMBLY - transmission to rear axle, see figure 6-157 for drive line mounting, Includes: Ref. 1-13

1шт.

1

H364596

YOKE

- splined, transmission end

1шт.

H146431

U-JOINT SPIDER

KIT - universal joint, drive shaft, transmission end, Includes: Ref. 2-5

1шт.

2

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft, transmission end, order H146431 kit

13шт.

3

NSS

NOT SOLD SEPARAT

BEARING - universal joint, order H146431 kit

4шт.

4

11256

SNAP RING

RETAINING RING - special, bearing

4шт.

5

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree, 1/4" - 28 NF taper

1шт.

6

H364604

YOKE

- splined, drive shaft end

1шт.

7

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

8

H640714

DRIVE SHAFT

TUBE - drive shaft

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, drive shaft, axle end, Includes: Ref. 9-12

1шт.

9

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft, axle end, order D70629 kit

1шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4" - 28 NF taper

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - universal joint, order D70629 kit

4шт.

12

11256

SNAP RING

RETAINING RING - special, bearing

4шт.

13

H251777

FLANGE

YOKE - drive shaft, axle end

1шт.
