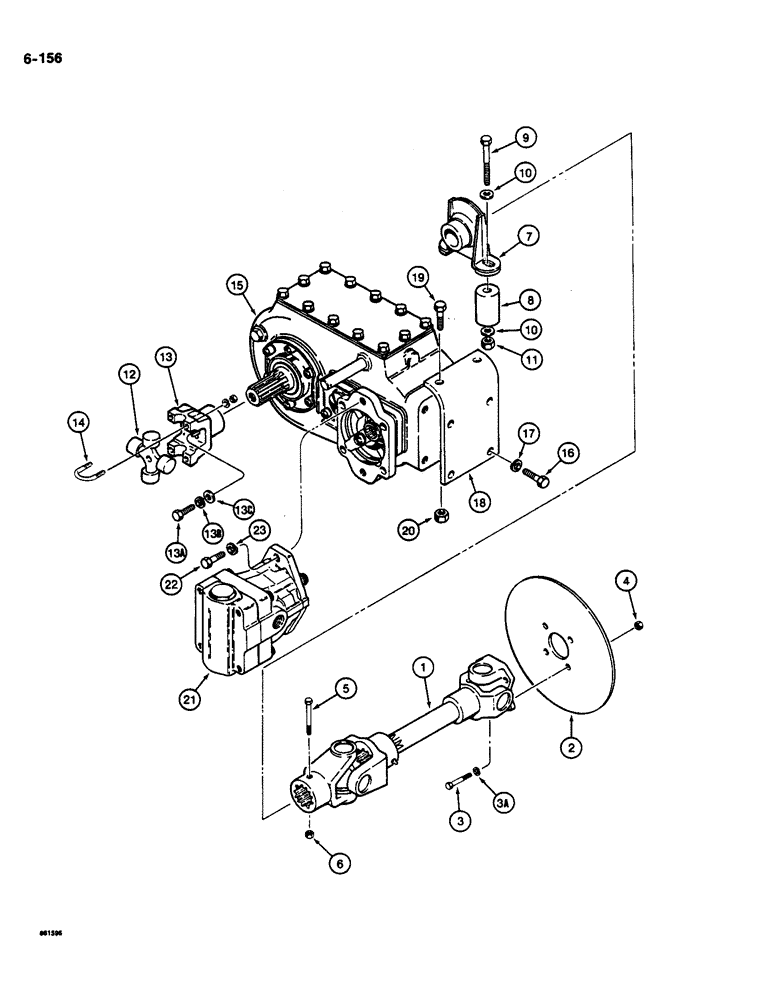

Запчасти Case DH4B (6-156) - DRIVE SHAFT, GROUND DRIVE MOTOR, AND TRANSMISSION MOUNTING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
H637272
DRIVE SHAFT
ASSEMBLY - transmission to rear axle, parts list Figure 6-158
1шт.
2
H643031
BRAKE DISC
DISC - brake
1шт.
3
H379412
BOLT
- special, aircraft type
4шт.
3a
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
4
131-1133
NUT,3/8"-24, GC
NUT - hex, self-locking, 3/8" - 24 NF, plated
4шт.
5
113-119
BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5
1шт.
6
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16" - 18 NC, plated
1шт.
7
H758029
BEARING ASSY
BEARING ASSEMBLY - complete
1шт.
8
H364646
SPACER
- bearing
2шт.
9
113-411
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
2шт.
10
195-533
WASHER,1/2", SAE
- flat, 1/2", plated
4шт.
11
131-1182
LOCK NUT,1/2"-13, GA
NUT - hex, 1/2" - 13 NC, plated
2шт.
12
D70627
KIT
- spider and bearing
1шт.
13
H208488
YOKE
- end
1шт.
13a
113-424
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
1шт.
13b
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
13c
D64050
WASHER
- flat, 1/2", hardened, special diminsions
1шт.
14
H183566
BOLT
U-BOLT - hex head, 1/2", plated
4шт.
15
H655589
TRANSMISSION
ASSEMBLY - ground drive, parts list Figures 6-162
1шт.
16
113-417
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
17
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
18
H399766
BRACKET
PLATED - transmission mounting
1шт.
19
H316976
BOLT
- hex head, 1/2" - 13 NC x 2", special
1шт.
Used with B17423 LOCKTITE
1шт.
20
131-1153
LOCK NUT,1/2"-13, GC
NUT, LOCK, 1/2"-13, GC
1шт.
Used with B17423 LOCKTITE
1шт.
21
H624759
MOTOR, ELECTRIC
MOTOR ASSEMBLY - ground drive, parts list figure 6-155
1шт.
22
113-410
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
2шт.
23
192-23
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
B17423
LOCTITE
LOCKTITE - 271 red, 50 ml bottle, use with refs. 19 and 20
1шт.
M20704
ADHESIVE
GASKET - form in place, 3 oz. (3206 ml) sealant in a tube, use between ground drive motor and transmission
1шт.
Выбрано товаров: 31
