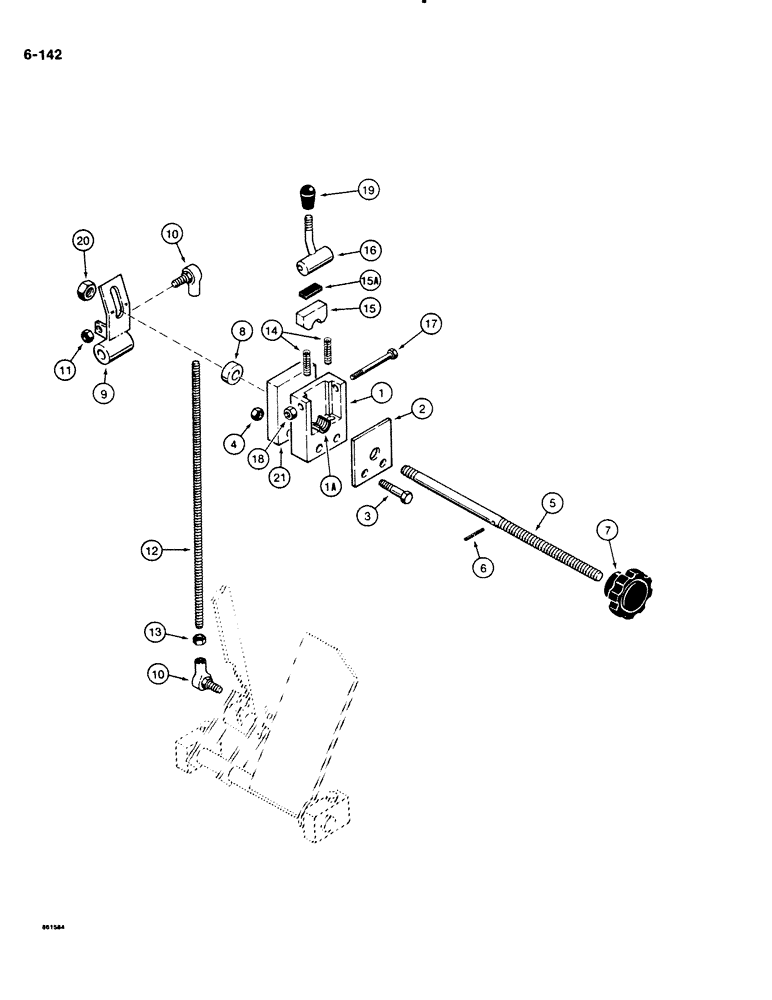

Запчасти Case DH4B (6-142) - CREEP CONTROL, MODELS WITH STEERING WHEEL (06) - POWER TRAIN

H608885

CONTROL BLOCK

BASE ASSEMBLY - control, Includes: Ref. 1, 1A

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - control, order H608885 base assembly

1шт.

1a

NSS

NOT SOLD SEPARAT

BUSHING - base, order H608885 base assembly

1шт.

2

H233767

COVER ASSY

PLATE - cover

1шт.

3

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

5

H225158

SHAFT - adjusting

1шт.

6

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

7

H239004

KNOB

- adjusting

1шт.

8

H430983

SPACER

- shaft

1шт.

9

H659292

ARM ASSY.

BELLCRANK - creep control

1шт.

10

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - threaded rod

2шт.

11

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - hex, self-locking, 5/16" - 18 NC, plated

2шт.

12

H404616

LINK

ROD - threaded

1шт.

13

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

14

H253864

VALVE SPRING

SPRING - release

2шт.

15

H299131

BLOCK

- half nut, locking

1шт.

15a

H299149

BLOCK

CUSHION - friction

1шт.

16

H601203

CAM

LEVER - cam

1шт.

17

113-46

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex head, 1/4" - 20 NC x 2-3/4", plated

1шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

19

A14051

GRIP

KNOB - lever

1шт.

20

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

21

H409706

BLOCK

- control

1шт.
