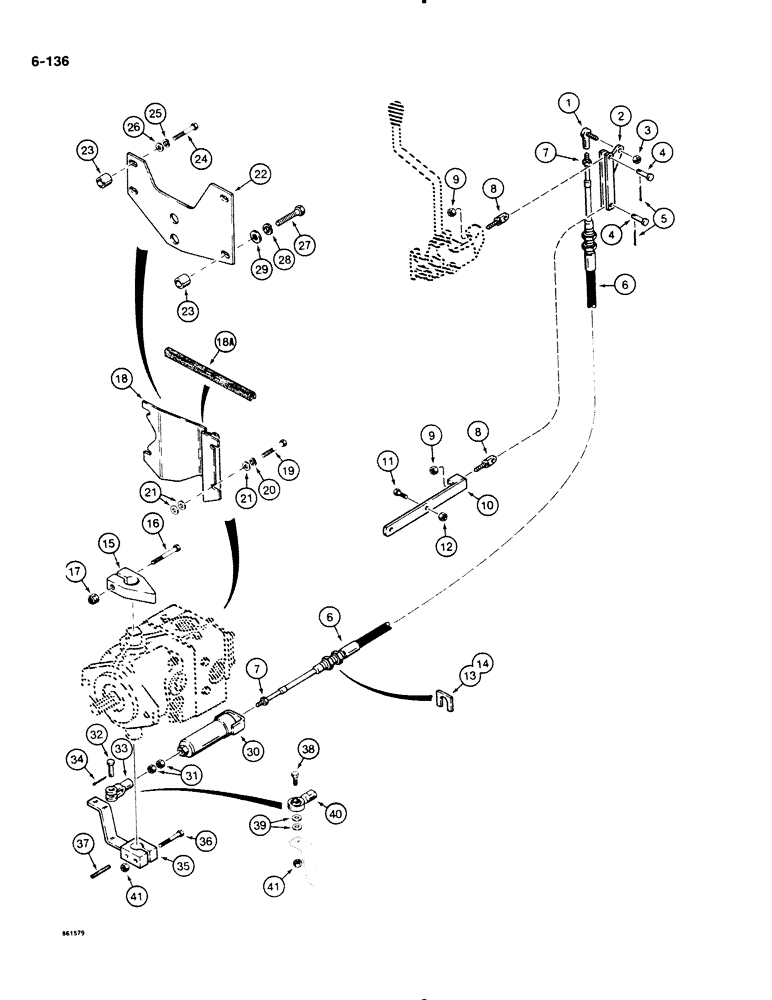

Запчасти Case DH4B (6-136) - GROUND DRIVE CONTROL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
H289652
BALL JOINT,5/16" - 24 x 1-3/8" L
JOINT - cable end, models with mono-stick
1шт.
2
H587352
CONTROL
LINK - control, models with mono-stick
1шт.
3
131-1246
LOCK NUT,5/16"-24, GC
NUT, LOCK, , Models with mono-stick 5/16"-24, GC
1шт.
4
H169318
CLEVIS COUPLING,6.35mm OD x 22.62mm L
CLEVIS PIN - special, models with mono-stick
2шт.
5
132-329
COTTER PIN,1/16" x 3/4"
models with mono-stick 1/16" x 3/4"
2шт.
6
H416123
CABLE PULLING GRIP
CABLE ASSEMBLY - ground drive control, models with mono-stick
1шт.
7
86637933
JAM NUT,5/16" - 24, Gr 5
Models with mono-stick Jam, 5/16"-24, G5
2шт.
8
H217109
BOLT
EYE BOLT - lever, models with mono-stick
2шт.
9
131-1246
LOCK NUT,5/16"-24, GC
NUT, LOCK, , Models with mono-stick 5/16"-24, GC
2шт.
10
H588798
LINK
- hex, self-locking, 5/16" - 24 NF, plated, models with mono-stick
2шт.
11
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Models with mono-stick Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
12
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16 - 18 NC, plated, models with mono-stick
1шт.
13
H231670
SHIM,.035" Thk
(0.889 mm), Used before PIN, models with mono-stick .035" Thk, Serial Range: -1228774
1шт.
14
H231688
SHIM,.014" Thk
(0.356 mm), Used before PIN, models with mono-stick .014" Thk, Serial Range: -1228774
1шт.
15
H408146
PLATE
TAB - switch actuator, used before PIN, models with mono-stick, Serial Range: -122877
1шт.
16
113-121
BOLT,Hex, 5/16" - 18 x 2", Gr 5
Used before PIN, models with mono-stick Hex, 5/16"-18 x 2", G5, Serial Range: -1228774
2шт.
17
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16" - 18 NC, plated, used before PIN, models with mono-stick, Serial Range: -1228774
2шт.
18
H404335
BRACKET - cable mounting, used before PIN, models with mono-stick, Serial Range: -1228774
1шт.
18a
REF
INSTRUCTION
TRIM - edge, 7" (178 mm) long, cable mounting bracket, used before PIN, cut from F42827, see below, models with mono-stick, Serial Range: -1228774
1шт.
19
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
Used before PIN, models with mono-stick Hex, 5/16"-18 x 1 3/4", G5, Serial Range: -1228774
4шт.
20
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Used before PIN, models with mono-stick 5/16", Serial Range: -1228774
4шт.
21
195-521
WASHER,5/16", SAE
- flat, 5/16", plated, used before PIN, models with mono-stick, Serial Range: -1228774
12шт.
22
H433110
BRACKET
- cable mounting, used on PIN and after, models with mono-stick, Start Serial: 1228774
1шт.
23
H433111
SPACER
- cable mounting bracket, used on PIN and after, models with mono-stick, Start Serial: 1228774
4шт.
24
113-120
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
Used on PIN and after, models with mono-stick Hex, 5/16"-18 x 1 3/4", G5, Start Serial: 1228774
2шт.
25
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, , Used on PIN and after, models with mono-stick 5/16", Start Serial: 1228774
2шт.
26
195-521
WASHER,5/16", SAE
- flat, 5/16", plated, used on PIN and after, models with mono-stick, Start Serial: 1228774
2шт.
27
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
Used on PIN and after, models with mono-stick Hex, 3/8"-16 x 1 3/4", G5, Start Serial: 1228774
2шт.
28
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , Used on PIN and after, models with mono-stick 3/8", Start Serial: 1228774
2шт.
29
196-1
WASHER,13/32" x 13/16" x .089", HDN
- flat, 3/8", hardened, plated, used on PIN and after, models with mono-stick, Start Serial: 1228774
2шт.
30
H382440
SPRING
ASSEMLBY - neutral centering, used before PIN, mon-stick and steering wheel units, Serial Range: -1228774
1шт.
31
86637933
JAM NUT,5/16" - 24, Gr 5
Neutral centering control mono-stick and steering wheel units used before PIN Jam, 5/16"-24, G5, Serial Range: -1228774
2шт.
32
H44206
CLEVIS COUPLING,7.94mm OD x 27.78mm L
CLEVIS PIN - special, used before PIN, replace with refs. 38-41, neutral centering control mono-stick and steering wheel units, Serial Range: -1228774
1шт.
33
H44198
YOKE
CLEVIS - special, used before PIN, replace refs. 38-41, neutral centering control mono-stick and steering wheel units, Serial Range: -1228774
1шт.
34
132-334
COTTER PIN,1/8" x 3/4"
PIN, SPLIT (COTTER), , Used before PIN, neutral centering control mono-stick and steering wheel units 1/8" x 3/4", Serial Range: -1228774
1шт.
35
H656082
LEVER
ARM - ground drive pump, used with H628040 pump, see figure 6-147, neutral centering control mono-stick and steering wheel units used before PIN, Serial Range: -1228774
1шт.
35
H672701
LEVER
ARM - ground drive pump, used with H672706 pump, see figure 6-151, neutral centering control mono-stick and steering wheel units used before PIN, Serial Range: -1228774
1шт.
36
113-110
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
- hex head, 5/16" - 18 NC x 1", plated, neutral centering control mono-stick and steering wheel units used before PIN, Serial Range: -1228774
1шт.
37
138-142
LOCK PIN,1/4" x 2", Slotted
PIN, , Neutral centering control mono-stick and steering wheel units used before PIN 1/4" x 2", Slotted, Serial Range: -1228774
1шт.
38
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Neutral centering control mono-stick and steering wheel units used before PIN Hex, 5/16"-18 x 1", G5, Full Thd, Serial Range: -1228774
1шт.
39
195-521
WASHER,5/16", SAE
- flat, 5/16", plated, neutral centering control mono-stick and steering wheel units used before PIN, Serial Range: -1228774
2шт.
40
A76685
BALL JOINT
- 5/16", neutral centering control mono-stick and steering wheel units used before PIN, Serial Range: -1228774
1шт.
41
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16" - 18 NC, plated, neutral centering control mono-stick and steering wheel units used before PIN, Serial Range: -1228774
1-2шт.
F42827
TRIM,2946.4mm L
TRIM - edge, 116" (2946 mm) long, use to make ref. 18A, neutral centering control mono-stick and steering wheel units used before PIN, Serial Range: -1228774
1шт.
