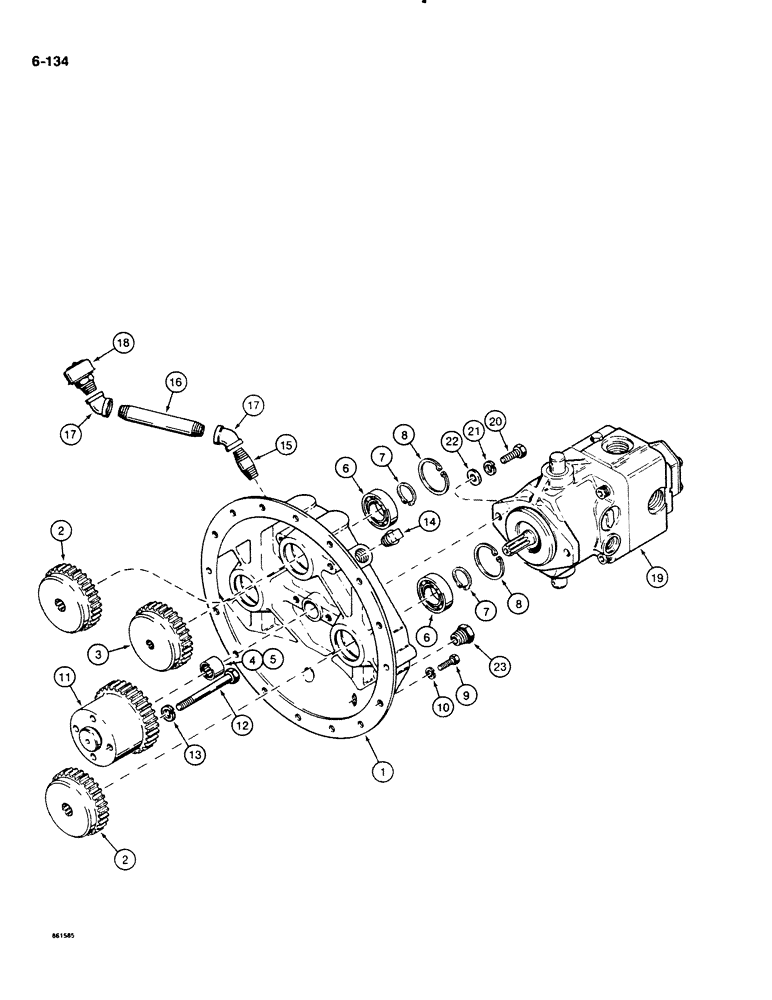

Запчасти Case DH4B (6-134) - PUMP DRIVE (06) - POWER TRAIN

H661942

DRIVE ASSY.

PUMP DRIVE ASSEMBLY - rear of engine, Includes: Ref. 1-8

1шт.

1

H399048

HOUSING

- pump drive assembly, uses M20704 GASKET

1шт.

2

H405506

GEAR

- driven, side

2шт.

3

H411389

GEAR

- driven, upper

1шт.

4

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

NEEDLE BEARING - center

1шт.

5

H10249

LOCTITE - special, No. 601, .05 fluid ounces, bearing retaining

1шт.

6

H753103

BALL BEARING

- driven gears

3шт.

7

A7409

SNAP RING,#137, Ext

RING, Snap, , small #137, Ext

3шт.

8

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, 2.44", Int, #244

3шт.

9

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 25 mm (8.8), plated

13шт.

9a

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

BOLT - hex socket head, 10 mm - 1.5 x 25 mm (8.8), plated, not shown

1шт.

10

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

14шт.

11

H399105

GEAR

- pump drive

1шт.

12

H405514

BOLT

- hex head, 12 mm - 1.25 x 110 mm, special

4шт.

13

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm, plated

4шт.

14

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - square head, 3/4" NPT

1шт.

15

217-1073

HYD CONNECTOR,3/4" - 14 NPTF

CONNECTOR - straight

1шт.

16

221-225

NIPPLE - 3/4" NPT x 7" Nipple, 3/4" NPT x 7"

1шт.

17

221-369

ELBOW UNION,45 Degree, 3/4" NPT

ELBOW - 45 degree, 3/4" NPT

2шт.

18

A75179

BREATHER

- pipe

1шт.

19

H628040

PUMP, HYDRAULIC

PUMP ASSEMBLY - ground drive, if used, parts list Figure 6-146, uses M20704 GASKET

1шт.

19

H672706

PUMP

ASSEMBLY - ground drive, if used, parts list Figures 6-150, uses M20704 GASKET

1шт.

20

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

21

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

22

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, if used

2шт.

23

D63875

PLUG

- liquid level

1шт.

M20704

ADHESIVE

GASKET - form-in-place, 2.8 fluid ounces per tube, use between pump drive housing and engine and between the pumps and the pump drive housing

1шт.

B17423

LOCTITE

- 271 red, 50 ml bottle. Use when installing all pump mounting bolts

1шт.

B17426

GASKET MAKER FLUID

LOCTITE - sealant, 50 ml tube. Use on all pipe threads on pump drive gearbox

1шт.
