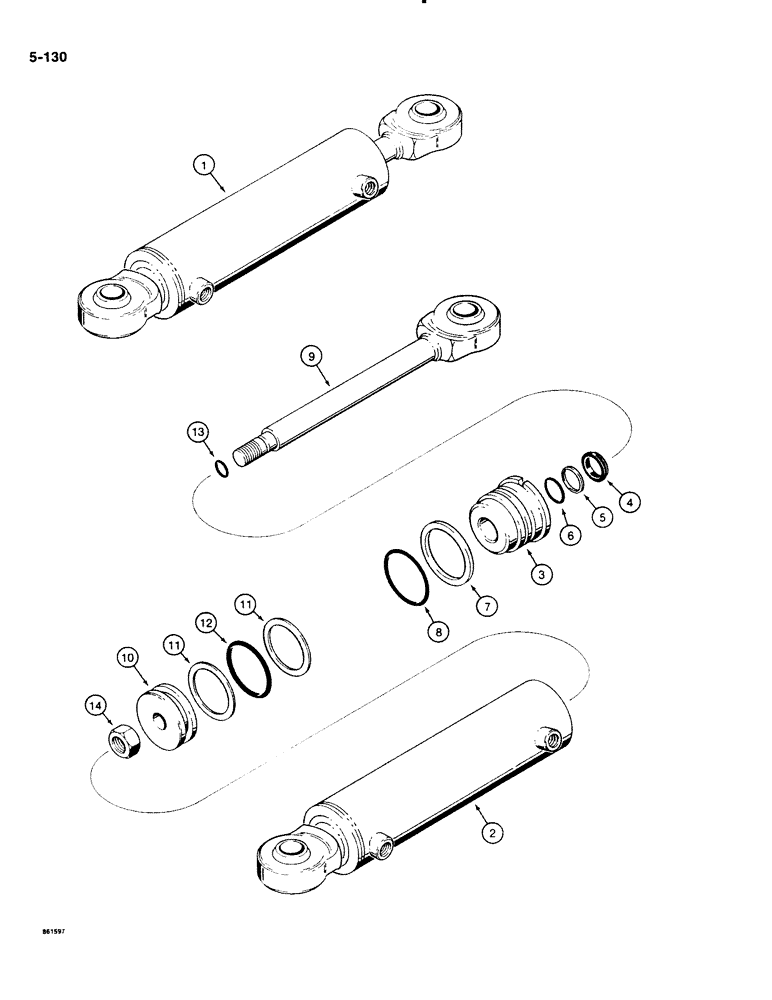

Запчасти Case DH4B (5-130) - STEERING CYLINDER (05) - STEERING

1

H672378

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-1/2" (64 mm) ID x 8.0" (203 mm) stroke, Lantex No. 5567-TM, steering (Replaces H672678), Includes: Ref. 2-14

1шт.

2

N8520

TUBE,1.01" ID x 2.5" OD x 13.84" L

- cylinder

1шт.

3

N8519

GLAND

- cylinder

1шт.

4

H755793

RETAINER

WIPER - rod

1шт.

Part of Seal Kit, P/N H583112

1шт.

5

A35899

RING

BACKUP RING - small O-ring, gland inner, piston rod

1шт.

Part of Seal Kit, P/N H583112

1шт.

6

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- small, gland inner, piston rod

1шт.

Part of Seal Kit, P/N H583112

1шт.

7

H207027

LOCK ASSY

RETAINING RING - gland

1шт.

Ref. 7 H207027 is a locking wire.

1шт.

Part of Seal Kit, P/N H583112

1шт.

8

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- gland, outer

1шт.

Part of Seal Kit, P/N H583112

1шт.

9

N8521

ROD

- piston, 1" (254 mm) diameter

1шт.

10

H247023

PISTON

- cylinder

1шт.

11

A35810

RING

BACKUP RING - piston seal, outer

2шт.

Part of Seal Kit, P/N H583112

1шт.

12

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL - piston, outer

1шт.

Part of Seal Kit, P/N H583112

1шт.

13

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- piston, inner, rod

1шт.

Part of Seal Kit, P/N H583112

1шт.

14

230-46112

LOCK NUT,3/4"-16, GA

NUT - hex, self-locking, 3/4" - 16 NF, plated

1шт.

H583112

SEAL ASSY.

KIT - seal, includes Refs. 4-8 and 11-13

1шт.
