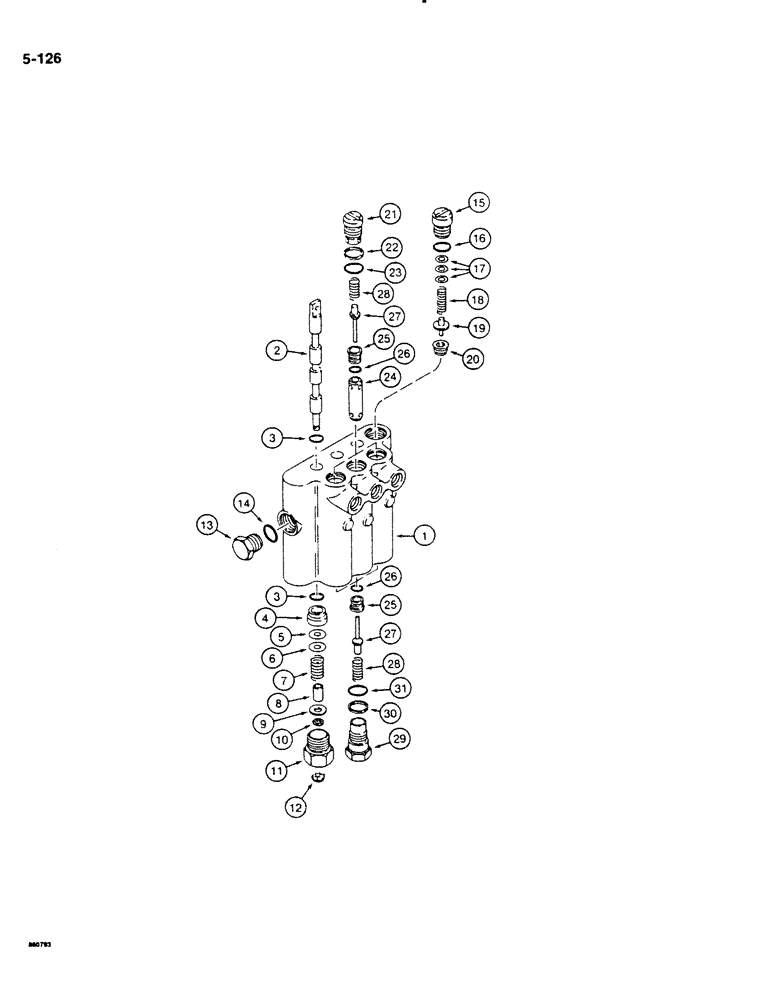

Запчасти Case DH4B (5-126) - MONO-STICK STEERING CONTROL VALVE - THREE SPOOL (05) - STEERING

H641050

LOCK VALVE

CONTROL VALVE ASSEMBLY - steering/attachment lift and 6-way backfill blade control, three-spool, Cessna No. 31923-CAD, Includes: Ref. 1-31

1-2шт.

A second H641050 control valve is used on models with the 6-way backfill blade.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - left hand angle, lift, and right hand angle

3шт.

3

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- spool

6шт.

4

F36304

BUSHING

- spool

3шт.

5

H253062

WASHER

- .046" (1.17 mm) thick

3шт.

6

H253054

WASHER

- .020" (0.51 mm) thick, one per spool, if required

3шт.

7

F36306

SPRING

- centering, spool

3шт.

8

F36239

SPACER

- spool

3шт.

9

F36908

WASHER

- .065" (1.65 mm) thick

3шт.

10

H758367

RING

RETAINING RING - spool

3шт.

11

H375667

CAP

- spool, end

3шт.

12

205-14

HOLE PLUG BUTTON,3/8"

PLUG - button, , end cap, Includes: Ref. 13, 14 3/8"

3шт.

N9862

PLUG

ASSEMBLY - hex head, 3/4" - NF, power beyond

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - power beyond

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- plug

1шт.

F37892

PLUG

ASSEMBLY - main relief valve, Includes: Ref. 15, 16

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - main relief valve

1шт.

16

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- plug

1шт.

17

H746149

SHIM,.015" Thk

(0.38 mm) .015" Thk

1шт.

17

F12267

WASHER

SHIM - .010" (0.25 mm) thick

1шт.

17

H220798

SHIM,.035" Thk

(0.89 mm) .035" Thk

1шт.

18

L33609

SPRING

- relief

1шт.

19

F37837

VALVE POPPET

POPPET - relief valve

1шт.

20

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

H636977

PLUG

ASSEMBLY - load check, Includes: Ref. 21-23

3шт.

21

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

22

G32626

RING

BACKUP RING - plug O-ring

1шт.

23

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- plug

1шт.

24

F8229

PLUNGER

- load check

3шт.

H636951

SEAT

ASSEMBLY - poppet, load check, Includes: Ref. 25, 26

6шт.

25

NSS

NOT SOLD SEPARAT

SEAT - poppet

1шт.

26

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- seat

1шт.

27

F77048

VALVE POPPET

POPPET - load check

6шт.

28

H364182

SPRING

- load check

6шт.

H636969

FITTING

PLUG ASSEMBLY - load check, port adapter, Includes: Ref. 29, 31

3шт.

29

NSS

NOT SOLD SEPARAT

PLUG - port adapter

1шт.

30

G32626

RING

BACKUP RING - plug O-ring

1шт.

31

H755975

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

- plug

1шт.
